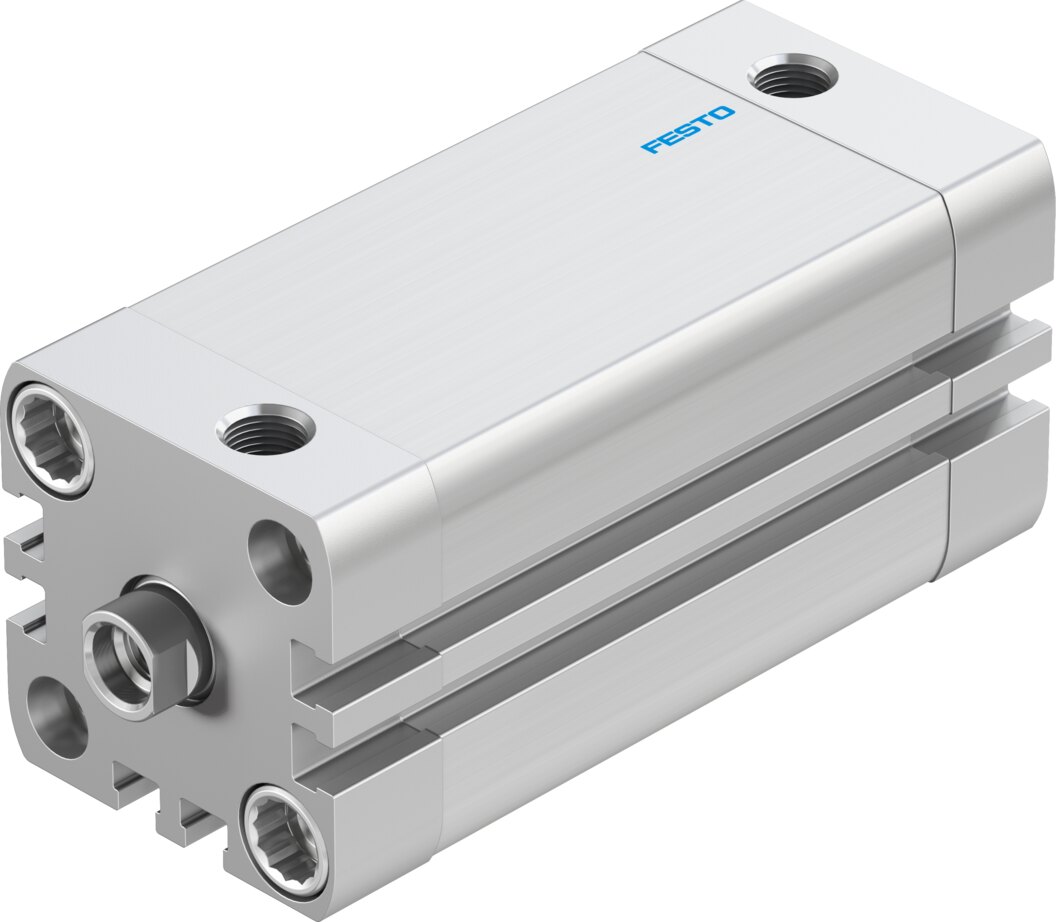

Festo ADN Compact cylinder - 32mm, G1/8, 60mm, ADN-32-60-I-PPS-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 32 mm, port size G1/8, stroke rate 60 mm, supplier type designation ADN-32-60-I-PPS-A. Supplied under manufacturer part number 572653, EAN 4052568218782, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 60 mm
- Piston diameter
- 32 mm
- Piston rod thread
- M8
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Female thread
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1 J
- Cushioning length
- 4 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 415 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 483 N
- Moving mass
- 112 g
- Product weight
- 423 g
- Type of mounting
- With through-hole; With female thread; With accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568218782
- Festo type code
- ADN-32-60-I-PPS-A
- Festo order number
- 572653
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 8.2175 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 572653
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568218782
- MPN 572653
Product Documentation
More from Festo
Festo
Festo B Blind plug brass, nickel-plated metric - 5mm, B-M5
4052568008468
Festo

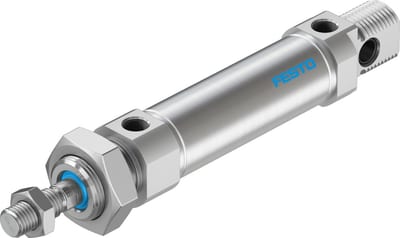

Festo DSNU Standard cylinder double-acting - 25mm, 10mm, G1/8", 40mm, DSNU-25-40-PPS-A
559283
Festo

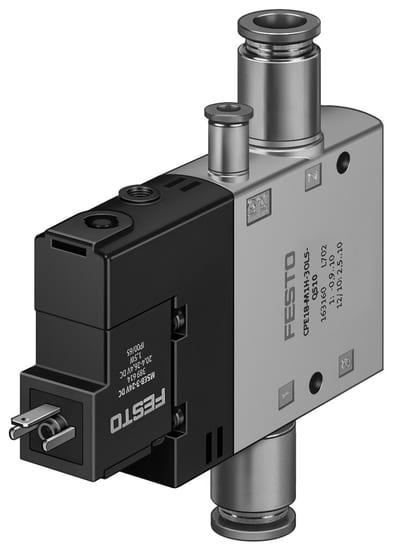

Festo CPE18 Solenoid Valve - QS-8", El, Spring, CPE18-M1H-3GLS-QS-8
163153
Festo

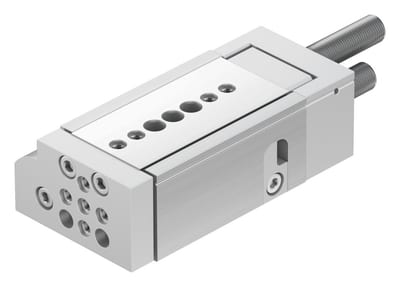

Festo DGSL Mini Slide - M5, DGSL-16-10-P1A
543991
Festo

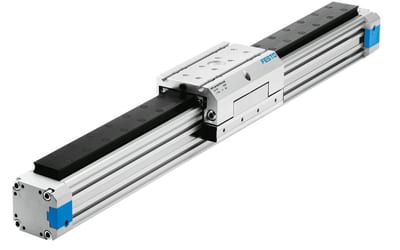

Festo DGPL Linear cylinder - 25mm, 400mm, DGPL-25-400-PPV-A-B-KF
526650
Festo

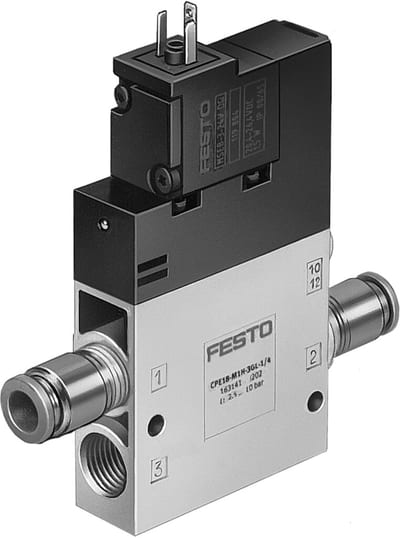

Festo CPE18 Solenoid Valve - QS-10", El, Spring, CPE18-M1H-3OL-QS-10
163156
Festo

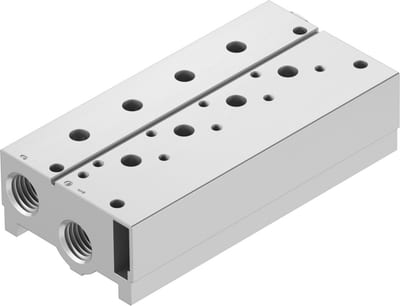

Festo VABM-B10 Connection block - 1/2", VABM-B10-30S-G12-4-P3
8026415
Festo

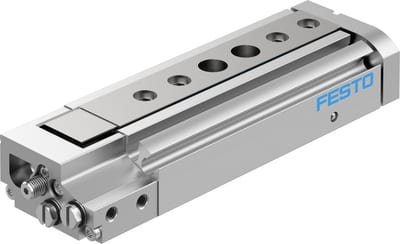

Festo DGSL Mini Slide - M3, DGSL-4-30-EA
