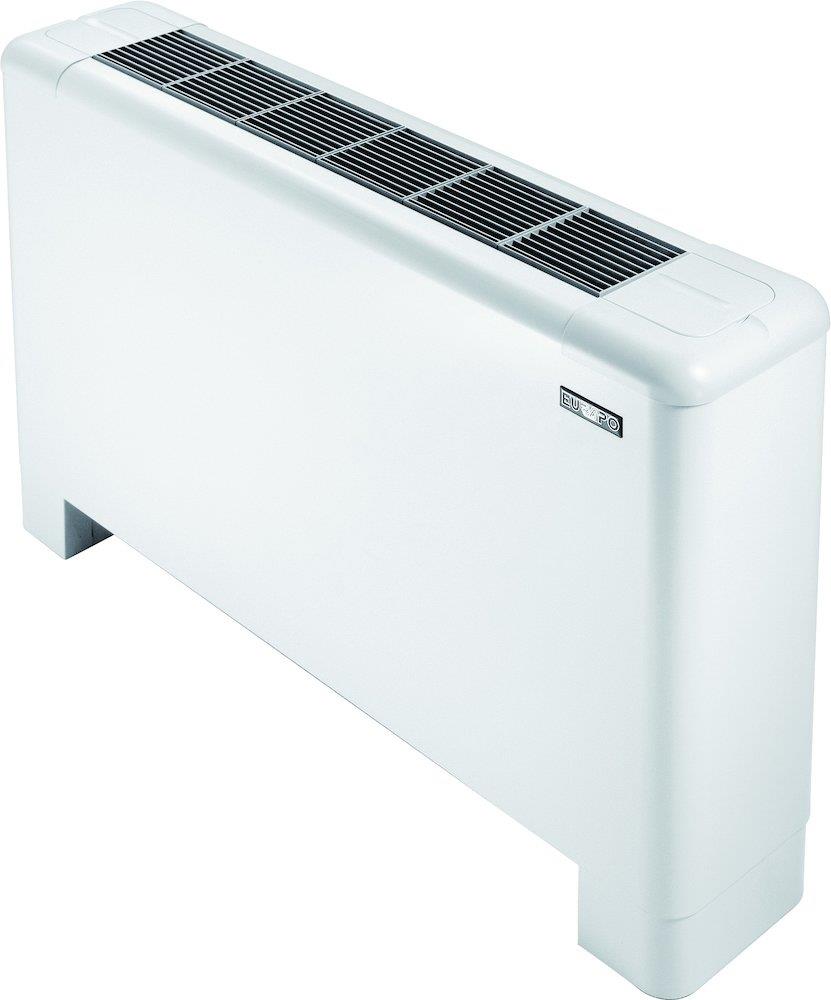

Eurapo Sigma 512 fan coil, vertical floor-standing, frontal air intake, EC inverter motor, 3-row coil, 2-way on/off valve, 1.98 kW cooling, 2.05 kW heating, 20–45 dB(A), ESTSV/AF512-3R+OPTV22W
Pricing
Request a quote
We reply within 24 hours
Product Description
Eurapo Sigma 512, a fan coil from the EST inverter range: vertical floor-standing cabinet, frontal air intake, upper air outlet. As ordered it carries a 3-row water coil; an EC brushless motor with built-in inverter; an ON/OFF 2-way regulating valve (_2xx / J2xx, 230 V thermoelectric actuator); the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system; the KPPH back panel for installations where the rear of the unit is in view; water connections on the right-hand side (DX, the factory standard; SX is the left-hand alternative). Rated performance for this configuration: cooling capacity 1.98 kW, heating capacity 2.05 kW, sound power level 20–45 dB(A), water connections 1/2 x 1/2". Maximum operating pressure is 10 bar with valves fitted. Full type designation ESTSV/AF 512-3R+AS+ORBV.10+KPPH+_2A2+DX. Supplied under manufacturer part number ESTSV/AF512-3R+OPTV22W, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- Floor model fan coils
- Product group
- Water cooling system
- Cooling capacity
- 1.98 kW
- Heating capacity
- 2.05 kW
- Sound performance level
- 20 to 45 dB(A)
- Type designation
- ESTSV/AF 512-3R+AS+ORBV.10+KPPH+_2A2+DX
- Pipe connection
- 1/2 x 1/2"
- Height
- 538 mm
- Width
- 773 mm
- Depth
- 233 mm
- Weight
- 21 kg
- Carbon footprint (EPD)
- 153.2045 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- ESTSV/AF512-3R+OPTV22W
Standards & Compliance
- HS Code
- 8415.90
Cross References
- MPN ESTSV/AF512-3R+OPTV22W
Product Documentation
