Eurapo EDS 030 high-pressure ducted fan coil, with KPM air-delivery plenum, EC inverter motor, 4-row coil, 2-way on/off valve, 8.96 kW cooling, 53 dB(A), 2191 m³/h, ESTEDS 030-4R+AS+ORBT.10+J2B2 + KPM 3 EDS 020-030
Pricing
Request a quote
We reply within 24 hours
Product Description
Eurapo EDS 030, a high-pressure ducted fan coil from the EST inverter range: double-skin ducted unit, horizontal installation. As ordered it carries a 4-row water coil; an EC brushless motor with built-in inverter; an ON/OFF 2-way regulating valve (_2xx / J2xx, 230 V thermoelectric actuator); the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system; the KPM 3 EDS 020-030 galvanised-steel air-delivery plenum with duct spigots on the air outlet. Rated performance for this configuration: cooling capacity 8.96 kW, air flow 2191 m³/h, sound power level 53 dB(A). The EDS is a double-skin, two-pipe ducted unit built from 25 mm insulated panels on an aluminium frame and rated for up to 300 Pa external static pressure. Maximum operating pressure is 10 bar with valves fitted. Full type designation ESTEDS 030-4R+AS+ORBT.10+J2B2 + KPM 3 EDS 020-030. Reference part number 10513657.
Technical Specifications
- Product type
- Fan coil duct model
- Product group
- Water cooling system
- Cooling capacity
- 8.96 kW
- Sound performance level
- 53 dB(A)
- Airflow
- 2191 m³/h
- Type designation
- ESTEDS 030-4R+AS+ORBT.10+J2B2 + KPM 3 EDS 020-030
- Coil rows
- 4
- Regulating valve
- 2-way on/off valve (ON/OFF, 230 V)
- Air-delivery plenum
- KPM 3 EDS 020-030
- Country of origin
- Italy
- Reference number
- 10513657
Cross References
- MPN 10513657
- TYPE ESTEDS 030-4R+AS+ORBT.10+J2B2 + KPM 3 EDS 020-030
More from Eurapo
Eurapo
Eurapo Sigma 524 fan coil, horizontal ceiling-mounted, frontal air discharge, EC inverter motor, 3-row coil, 2-way on/off valve, 7.47 kW cooling, 8.43 kW heating, 33–53 dB(A), ESTSH/AF524-3R+OPTV22W
Eurapo
Eurapo Sigma 512 fan coil, horizontal ceiling-mounted, frontal air discharge, EC inverter motor, 3-row coil, 2-way on/off valve, 1.98 kW cooling, 3.04 kW heating, 20–45 dB(A), ESTSH/AF512-3R+OPTV22W
Eurapo
Eurapo UCS 622 cassette fan coil, 4-way discharge for 600 x 600 mm false ceilings, EC inverter motor, 2-way on/off valve, 4.85 kW cooling, 4.91 kW heating, 29–49 dB(A), ESTUCS622+OPT V2 2W
Eurapo
Eurapo EDS Plenum 006-008 - EDS 006-008, KPM EDS 006-008
K0704018
Eurapo
Eurapo EDS 008 high-pressure ducted fan coil, with KPM air-delivery plenum, EC inverter motor, 4-row coil, 2-way on/off valve, 5 kW cooling, 40 dB(A), 1040 m³/h, ESTEDS 008-4R+AS+ORBT.10+J2B2 + KPM EDS 006-008
10513555
Eurapo
Eurapo Sigma 522 fan coil, vertical floor-standing, frontal air intake, EC inverter motor, 3-row coil, 3-way on/off valve with bypass, 5.81 kW cooling, 6.53 kW heating, 29–52 dB(A), ESTSV/AF522-3R+OPTV23W
Eurapo
Eurapo EDS 030 high-pressure ducted fan coil, with KPM air-delivery plenum, EC inverter motor, 4-row coil, 3-way on/off valve with bypass, 8.96 kW cooling, 54 dB(A), 2611 m³/h, ESTEDS 030-4R+AS+ORBT.10+J3B2 + KPM 3 EDS 020-030
10513659
Eurapo

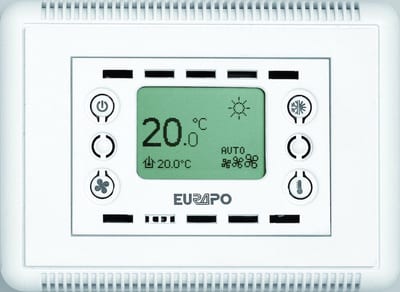

Eurapo Remote Control wired - ODC236
