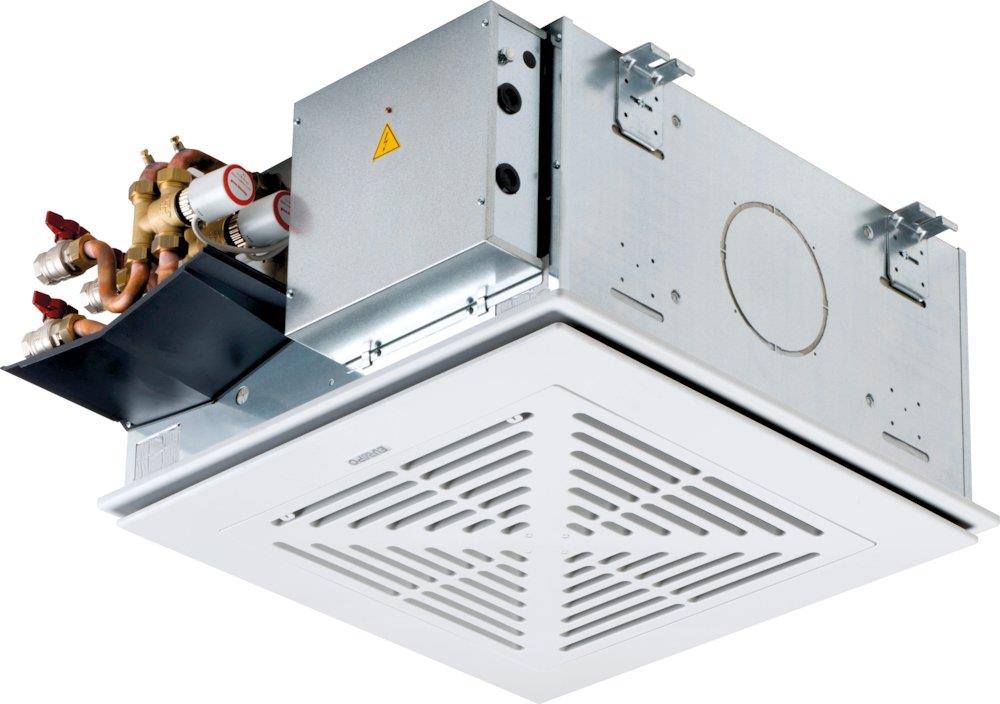

Eurapo UCS 622 cassette fan coil, 4-way discharge for 600 x 600 mm false ceilings, EC inverter motor, 2-way on/off valve, 4.85 kW cooling, 4.91 kW heating, 29–49 dB(A), ESTUCS622+OPT V2 2W
Pricing
Request a quote
We reply within 24 hours
Product Description
Eurapo UCS 622, a cassette fan coil from the EST inverter range: 4-way air discharge, flush false-ceiling installation. As ordered it carries an EC brushless motor with built-in inverter; an ON/OFF 2-way regulating valve (_2xx / J2xx, 230 V thermoelectric actuator); DT full-bore ball shut-off valves with T handle, so the unit can be isolated from the pipework for service; the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system; water connections on the right-hand side (DX, the factory standard; SX is the left-hand alternative). Rated performance for this configuration: cooling capacity 4.85 kW, sensible cooling capacity 3.79 kW, heating capacity 4.91 kW, sound power level 29–49 dB(A), water connections 3/4". No remote control is included with this configuration; Eurapo’s Omnibus 360 consoles are ordered separately. Maximum operating pressure is 10 bar with valves fitted. Full type designation ESTUCS 622+AS+ORBU.10+DT_2B2+DX. Supplied under manufacturer part number ESTUCS622+OPT V2 2W, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- 4-way fan coils
- Product group
- Water cooling system
- Cooling capacity
- 4.85 kW
- Sensible cooling capacity
- 3.79 kW
- Heating capacity
- 4.91 kW
- Sound performance level
- 29 to 49 dB(A)
- Pipe connection
- 3/4"
- Remote control included
- No
- Type designation
- ESTUCS 622+AS+ORBU.10+DT_2B2+DX
- Weight
- 30 kg
- Height
- 328 mm
- Installation dimension
- 600 x 600 mm
- Frequency
- 50 Hz
- Voltage
- 230 V
- Carbon footprint (EPD)
- 229.3027 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- ESTUCS622+OPT V2 2W
Standards & Compliance
- HS Code
- 8415.90
Cross References
- MPN ESTUCS622+OPT V2 2W
Product Documentation
