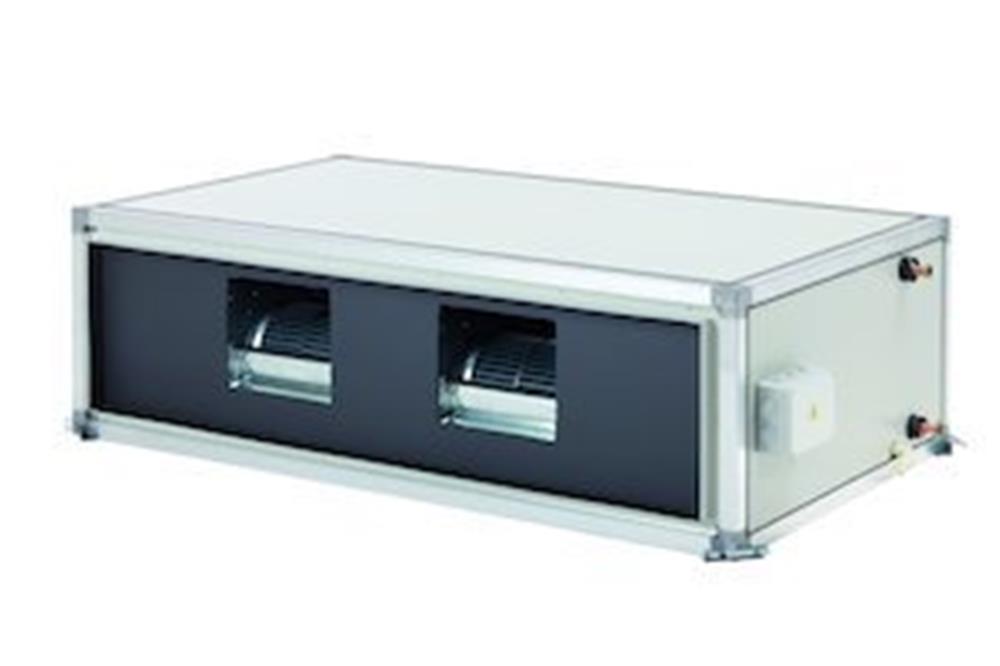

Eurapo EDS 060 high-pressure ducted fan coil, without plenum, EC inverter motor, 4-row coil, 3-way on/off valve with bypass, 23.8 kW cooling, 65 dB(A), 4769 m³/h, ESTEDS060-4R+OPT V2 3W
Pricing
Request a quote
We reply within 24 hours
Product Description
Eurapo EDS 060, a high-pressure ducted fan coil from the EST inverter range: double-skin ducted unit, horizontal installation. As ordered it carries a 4-row water coil; an EC brushless motor with built-in inverter; an ON/OFF 3-way regulating valve with bypass (_3xx / J3xx, 230 V thermoelectric actuator); the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system. Rated performance for this configuration: cooling capacity 23.8 kW, air flow 4769 m³/h, sound power level 65 dB(A). The EDS is a double-skin, two-pipe ducted unit built from 25 mm insulated panels on an aluminium frame and rated for up to 300 Pa external static pressure. Maximum operating pressure is 10 bar with valves fitted. Full type designation ESTEDS 060-4R+AS+ORBT.10+J3C2. Supplied under manufacturer part number ESTEDS060-4R+OPT V2 3W, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- Fan coil duct model
- Product group
- Water cooling system
- Cooling capacity
- 23.8 kW
- Sound performance level
- 65 to 65 dB(A)
- Airflow
- 4769 to 4769 m³/h
- Type designation
- ESTEDS 060-4R+AS+ORBT.10+J3C2
- Height
- 550 mm
- Width
- 1777 mm
- Depth
- 1030 mm
- Carbon footprint (EPD)
- 901.9241 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- ESTEDS060-4R+OPT V2 3W
Standards & Compliance
- HS Code
- 8415.90
Cross References
- MPN ESTEDS060-4R+OPT V2 3W
More from Eurapo
Eurapo
Eurapo UCS 621 cassette fan coil, 4-way discharge for 600 x 600 mm false ceilings, EC inverter motor, 3-way on/off valve with bypass, 2.85 kW cooling, 2.99 kW heating, 22–45 dB(A), ESTUCS621+OPT V2 3W
Eurapo
Eurapo EBH 030 high-pressure ducted fan coil, with KPM air-delivery plenum, EC inverter motor, 4-row coil, 3-way on/off valve with bypass, 9.94 kW cooling, 11.5 kW heating, 51 dB(A), 1981 m³/h, ESTEBH 030-4R+AS+ORBT.10+J3B2 + KPM EBH 020-030
10513686
Eurapo
Eurapo UCS 922 cassette fan coil, 4-way discharge for 900 x 900 mm false ceilings, EC inverter motor, no valve fitted, 9.99 kW cooling, 10.2 kW heating, 23–51 dB(A), ESTUCS 922+OPT V2
Eurapo
Eurapo EDS 040 high-pressure ducted fan coil, with KPM air-delivery plenum, EC inverter motor, 4-row coil, 3-way on/off valve with bypass, 12.7 kW cooling, 57 dB(A), 3354 m³/h, ESTEDS 040-4R+AS+ORBT.10+J3B2 + KPM 4 EDS 040-050
10513651
Eurapo

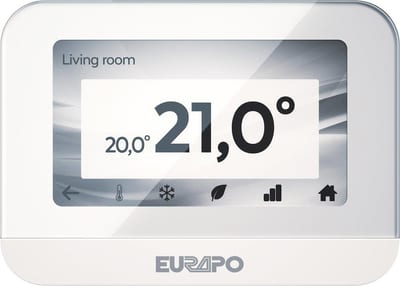

Eurapo Remote Control - KORC436 V2
