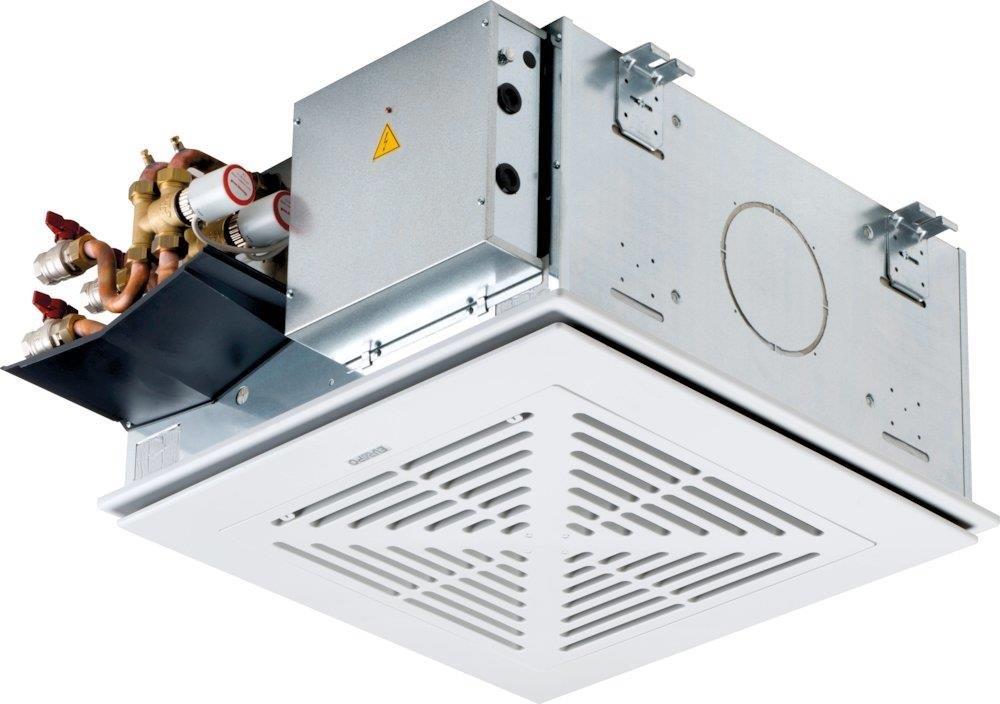

Eurapo UCS 922 cassette fan coil, 4-way discharge for 900 x 900 mm false ceilings, EC inverter motor, no valve fitted, 9.99 kW cooling, 10.2 kW heating, 23–51 dB(A), ESTUCS 922+OPT V2
Pricing
Request a quote
We reply within 24 hours
Product Description
Eurapo UCS 922, a cassette fan coil from the EST inverter range: 4-way air discharge, flush false-ceiling installation. As ordered it carries an EC brushless motor with built-in inverter; no regulating valve — the unit is supplied for an external valve or for constant-flow operation; the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system; water connections on the right-hand side (DX, the factory standard; SX is the left-hand alternative). Rated performance for this configuration: cooling capacity 9.99 kW, sensible cooling capacity 7.87 kW, heating capacity 10.2 kW, sound power level 23–51 dB(A), water connections 3/4". No remote control is included with this configuration; Eurapo’s Omnibus 360 consoles are ordered separately. Maximum operating pressure is 16 bar without valves fitted. Full type designation ESTUCS 922+AS+ORBU.10+DX. Supplied under manufacturer part number ESTUCS 922+OPT V2, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- 4-way fan coils
- Product group
- Water cooling system
- Cooling capacity
- 9.99 kW
- Sensible cooling capacity
- 7.87 kW
- Heating capacity
- 10.2 kW
- Sound performance level
- 23 to 51 dB(A)
- Pipe connection
- 3/4"
- Remote control included
- No
- Type designation
- ESTUCS 922+AS+ORBU.10+DX
- Weight
- 45 kg
- Height
- 360 mm
- Installation dimension
- 900 x 900 mm
- Frequency
- 50 Hz
- Voltage
- 230 V
- Carbon footprint (EPD)
- 286.4723 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- ESTUCS 922+OPT V2
Standards & Compliance
- HS Code
- 8415.90
Cross References
- MPN ESTUCS 922+OPT V2
