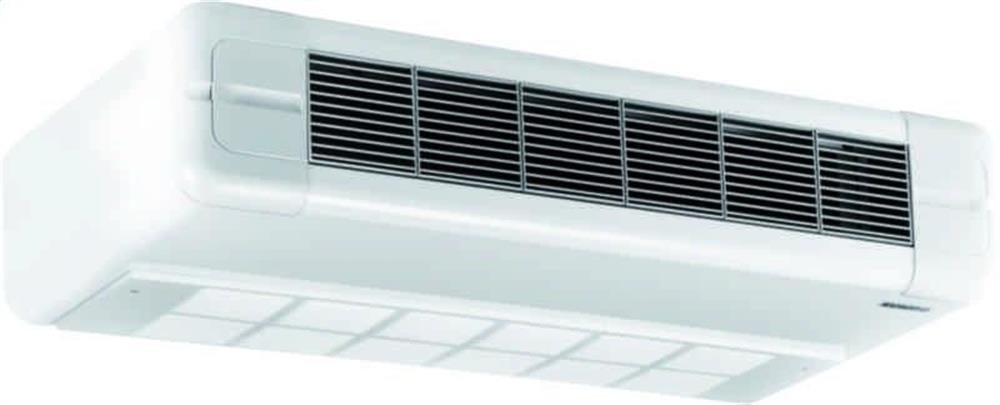

Eurapo Sigma 512 fan coil, horizontal ceiling-mounted, frontal air discharge, EC inverter motor, 3-row coil, 2-way on/off valve, 1.98 kW cooling, 3.04 kW heating, 20–45 dB(A), ESTSH/AF512-3R+OPTV22W

Eurapo Sigma 512, a fan coil from the EST inverter range: horizontal ceiling unit, frontal air discharge, bottom air intake. As ordered it carries a 3-row water coil; an EC brushless motor with built-in inverter; an ON/OFF 2-way regulating valve (_2xx / J2xx, 230 V thermoelectric actuator); the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system; the KPPH back panel for installations where the rear of the unit is in view; water connections on the right-hand side (DX, the factory standard; SX is the left-hand alternative). Rated performance for this configuration: cooling capacity 1.98 kW, heating capacity 3.04 kW, sound power level 20–45 dB(A), water connections 1/2 x 1/2". Maximum operating pressure is 10 bar with valves fitted. Full type designation ESTSH/AF 512-3R+AS+ORBV.10+KPPH+_2A2+DX. Supplied under manufacturer part number ESTSH/AF512-3R+OPTV22W, HS code 8415.90, country of origin Italy.

Product type

Ceiling-mounted fan coils

Product group

Water cooling system

Cooling capacity

1.98 kW

Heating capacity

3.04 kW

Sound performance level

20 to 45 dB(A)

Pipe connection

1/2 x 1/2"

Type designation

ESTSH/AF 512-3R+AS+ORBV.10+KPPH+_2A2+DX

Height

233 mm

Width

773 mm

Depth

538 mm

Weight

21 kg

Carbon footprint (EPD)

153.2045 kg CO2e per pcs

Country of origin

Italy

Customs tariff code (EU CN)

84159000

HS code

8415.90

Manufacturer part number

ESTSH/AF512-3R+OPTV22W

HS Code

8415.90

• MPN ESTSH/AF512-3R+OPTV22W
