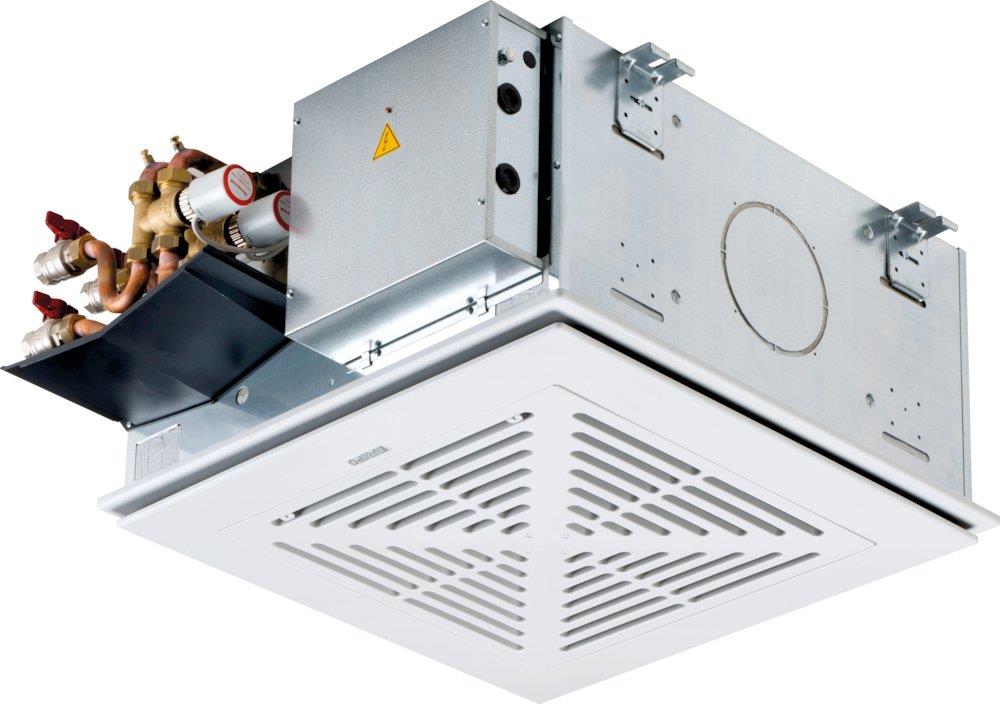

Eurapo UCS 922 cassette fan coil, 4-way discharge for 900 x 900 mm false ceilings, EC inverter motor, 2-way on/off valve, 9.99 kW cooling, 10.2 kW heating, 23–51 dB(A), ESTUCS922+OPT V2 2W
Pricing
Request a quote
We reply within 24 hours
Product Description
Eurapo UCS 922, a cassette fan coil from the EST inverter range: 4-way air discharge, flush false-ceiling installation. As ordered it carries an EC brushless motor with built-in inverter; an ON/OFF 2-way regulating valve (_2xx / J2xx, 230 V thermoelectric actuator); DT full-bore ball shut-off valves with T handle, so the unit can be isolated from the pipework for service; the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system; water connections on the right-hand side (DX, the factory standard; SX is the left-hand alternative). Rated performance for this configuration: cooling capacity 9.99 kW, sensible cooling capacity 7.87 kW, heating capacity 10.2 kW, sound power level 23–51 dB(A), water connections 3/4". No remote control is included with this configuration; Eurapo’s Omnibus 360 consoles are ordered separately. Maximum operating pressure is 10 bar with valves fitted. Full type designation ESTUCS 922+AS+ORBU.10+DT_2B2+DX. Supplied under manufacturer part number ESTUCS922+OPT V2 2W, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- 4-way fan coils
- Product group
- Water cooling system
- Cooling capacity
- 9.99 kW
- Sensible cooling capacity
- 7.87 kW
- Heating capacity
- 10.2 kW
- Sound performance level
- 23 to 51 dB(A)
- Pipe connection
- 3/4"
- Remote control included
- No
- Type designation
- ESTUCS 922+AS+ORBU.10+DT_2B2+DX
- Weight
- 45 kg
- Height
- 360 mm
- Installation dimension
- 900 x 900 mm
- Frequency
- 50 Hz
- Voltage
- 230 V
- Carbon footprint (EPD)
- 343.9541 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- ESTUCS922+OPT V2 2W
Standards & Compliance
- HS Code
- 8415.90
Cross References
- MPN ESTUCS922+OPT V2 2W
Product Documentation
More from Eurapo
Eurapo
Eurapo EDS 008 high-pressure ducted fan coil, with KPM air-delivery plenum, EC inverter motor, 4-row coil, no valve fitted, 8.33 kW cooling, 51 dB(A), 1554 m³/h, ESTEDS 008-4R+AS+ORBT.10 + KPM EDS 006-008
10513554
Eurapo
Eurapo Sigma 514 fan coil, vertical floor-standing, frontal air intake, EC inverter motor, 3-row coil, 2-way on/off valve, 2.56 kW cooling, 3.04 kW heating, 20–49 dB(A), ESTSV/AF514-3R+OPTV22W
Eurapo
Eurapo Sigma 522 fan coil, horizontal ceiling-mounted, frontal air discharge, EC inverter motor, 3-row coil, 3-way on/off valve with bypass, 5.81 kW cooling, 6.53 kW heating, 29–52 dB(A), ESTSH/AF522-3R+OPTV23W
Eurapo
Eurapo EDS 030 high-pressure ducted fan coil, with KPM air-delivery plenum, EC inverter motor, 4-row coil, 2-way on/off valve, 8.96 kW cooling, 53 dB(A), 2191 m³/h, ESTEDS 030-4R+AS+ORBT.10+J2B2 + KPM 3 EDS 020-030
10513657
Eurapo
Eurapo Sigma 524 fan coil, horizontal ceiling-mounted, frontal air discharge, EC inverter motor, 3-row coil, 2-way on/off valve, 7.47 kW cooling, 8.43 kW heating, 33–53 dB(A), ESTSH/AF524-3R+OPTV22W
Eurapo
Eurapo Sigma 512 fan coil, horizontal ceiling-mounted, frontal air discharge, EC inverter motor, 3-row coil, 2-way on/off valve, 1.98 kW cooling, 3.04 kW heating, 20–45 dB(A), ESTSH/AF512-3R+OPTV22W
Eurapo
Eurapo UCS 622 cassette fan coil, 4-way discharge for 600 x 600 mm false ceilings, EC inverter motor, 2-way on/off valve, 4.85 kW cooling, 4.91 kW heating, 29–49 dB(A), ESTUCS622+OPT V2 2W
Eurapo

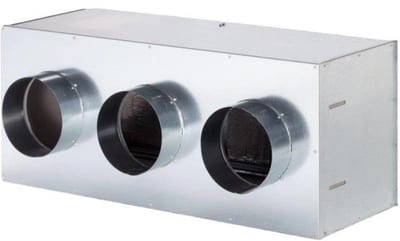

Eurapo EDS Plenum 006-008 - EDS 006-008, KPM EDS 006-008
