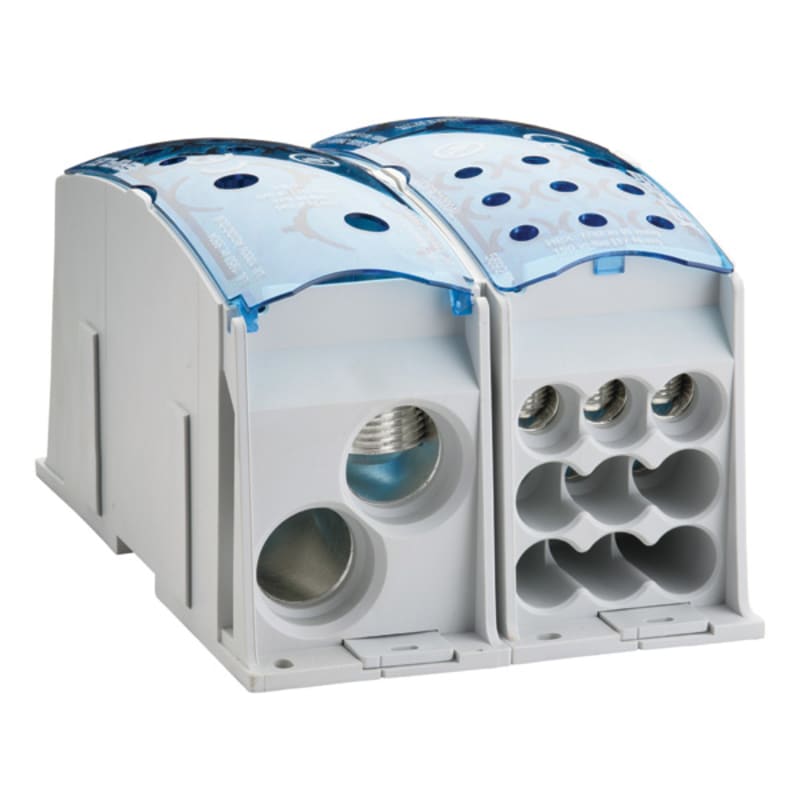

nVent ERIFLEX UD2C9C1250AL Single Pole Distribution Block, 1250 A IEC / 950 A UL-CSA, 2 Cables Line, 9 Cables Load, Aluminum
Pricing
Request a quote
We reply within 24 hours
Product Description
Eriflex UD2C9C1250AL In: 2x185-400mm2 Out 9x10-95mm2.
Technical Specifications
- Manufacturer part number (MPN)
- UD2C9C1250AL
- EAN / GTIN
- 0782856975434
- Sales unit
- pcs
- Rated current
- 1250 A
- Article Number
- 569209
- Finish
- Tinned
- Max Current Rating, IEC
- 1250 A
- Max Current Rating, UL/CSA
- 950 A
- Line Side Connection
- 2 Cables
- Load Side Connection
- 9 Cables
- Material
- Aluminum; Thermoplastic
- Line Side Max Conductor Size, IEC
- 400 mm²
- Line Side Max Conductor Size, UL
- 750 kcmil
- Load Side Max Conductor Size, IEC
- 95 mm²
- Load Side Max Conductor Size, UL
- 3/0 AWG
- Max Working Voltage, IEC (Ui)
- 1000; 1500
- Max Working Voltage, UL (Vin)
- 1000
- Short Term Withstand Current (Icw) 1s
- 84 kA
- Peak Short Circuit Current (Ipk)
- 73.5 kA
- Rated Conditional Short-Circuit Current (Icc)
- 35 kA
- Short Circuit Current Rating (SCCR)
- 100 kA
- Line Side Number of Connections
- 2
- Line Side Compact Stranded Wire Size
- 185 - 400 mm²
- Line Side Wire Size
- 400 – 750
- Load Side Number of Connections
- 9
- Load Side Compact Stranded Wire Size
- 10 - 95 mm²
- Load Side Stranded Wire Size - Ferrule
- #8 - #1
- Load Side Wire Size
- #8 - 3/0
- Enclosure Rating
- IP 20
- Depth (D)
- 195.6 mm
- Height (H)
- 112.1 mm
- Width (W)
- 70.5 mm
- Unit Weight
- 0.93 kg
- Certification Details
- UL® 1953
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60947-7-1
- UPC
- 782856975434
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Core cross section
- 400 mm²
- With seal head
- No
- Number of poles
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0782856975434
- SAP 1200413726
- Code 82456224
