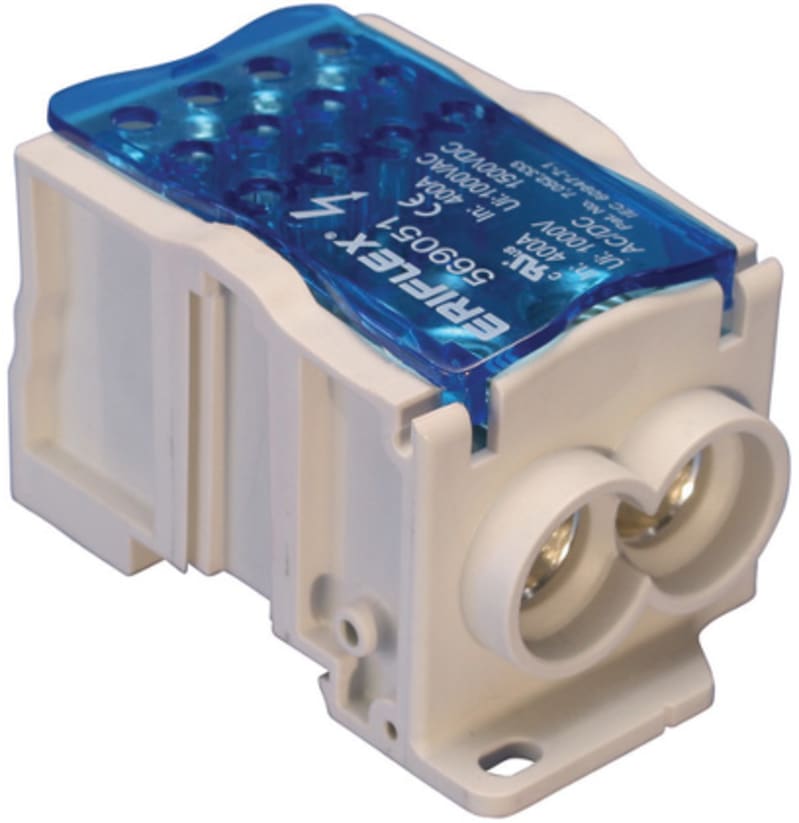

nVent ERIFLEX 569051 Single Pole Dist. Block,400 A UL/CSA, 2 Cables Line, 12 Cables Load, Copper
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary device for easy assembly between a wide range of conductors to perform electrical power distribution.
Technical Specifications
- Manufacturer part number (MPN)
- 569051
- EAN / GTIN
- 8711893096323
- Sales unit
- pcs
- Finish
- Tinned
- Max Current Rating, IEC
- 400A
- Max Current Rating, UL/CSA
- 400A
- Line Side Connection
- 2 Cables
- Load Side Connection
- 12 Cables
- Material
- Copper;Thermoplastic
- Line Side Max Conductor Size, IEC
- 95 mm²
- Line Side Max Conductor Size, UL
- 3/0 AWG
- Load Side Max Conductor Size, IEC
- 10 mm²
- Load Side Max Conductor Size, UL
- #6
- Max Working Voltage, IEC (Ui)
- 1000;1500
- Max Working Voltage, UL (Vin)
- 1000
- Short Term Withstand Current (Icw) 1s
- 24.5kA
- Peak Short Circuit Current (Ipk)
- 51kA
- Rated Conditional Short-Circuit Current (Icc)
- 24.3kA
- Short Circuit Current Rating (SCCR)
- 10kA
- Line Side Number of Connections
- 2
- Line Side Compact Stranded Wire Size
- 35 - 95 mm²
- Line Side Wire Size
- 8 Min
- Load Side Number of Connections
- 12
- Load Side Compact Stranded Wire Size
- (12) 2,5 - 10 mm²
- Load Side Stranded Wire Size - Ferrule
- (12) 2,5 - 10 mm²
- Load Side Wire Size
- (12) #14 - #6
- Enclosure Rating
- IP 20
- Depth (D)
- 1.99" / 50mm
- Height (H)
- 3.79" / 96 mm
- Width (W)
- 2.2" / 55.73 mm
- Unit Weight
- 0.84 lb / 0.38 kg
- Certification Details
- UL® 1059
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60947-7-1
- UPC
- 782856687603
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Number of poles
- 1
- Conductor cross section solid (solid, stranded)
- 2.5–10 mm²
- Max. rated current
- 400 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8711893096323
- SAP 1000767219
- Code 8560198
