Eriflex

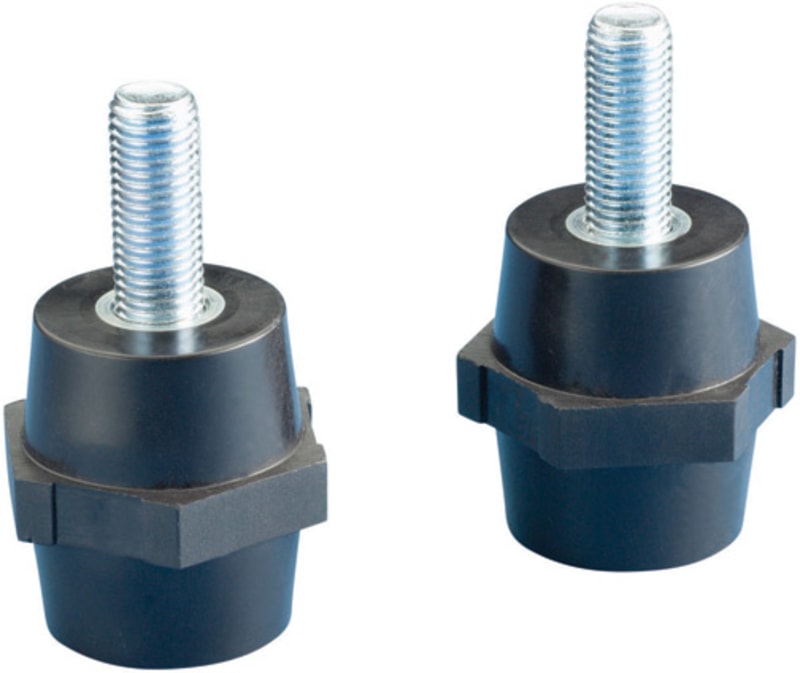

nVent ERIFLEX ISOTP40F8M8 Low Voltage Male/Female Insulators, 1.575"
Part numberISOTP40F8M8EAN / GTIN3479775420509HS code8546.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Low voltage electrical insulator.
Technical Specifications
- Manufacturer part number (MPN)
- ISOTP40F8M8
- EAN / GTIN
- 3479775420509
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Article Number
- 542050
- Material
- Steel;Glass Fibre Reinforced Polyamide
- Finish
- Electrogalvanized
- Working Temperature
- -40 to 266 °F / -40 to 130 °C
- Insulation Voltage
- 1000;1500
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60695-2-11 (Glow Wire Test 960 °C)
- Height (H)
- 1.57" / 40 mm
- Hex Width (W)
- 46 mm
- Depth (D)
- 2.09" / 53mm
- Diameter (Ø)
- 1.57" / 40 mm
- Thread Size 1 (TS1)
- M8
- Thread Length (TL)
- 0.67" / 17mm
- Thread Size 2 (TS2)
- M8
- Thread Depth (TD)
- 0.31" / 8mm
- Static Load 1 (F1)
- 2473lb / 11000daN
- Static Load 2 (F2)
- 1461lb / 6500daN
- Unit Weight
- 0.24 lb / 0.11 kg
- UPC
- 782856875161
- Standard Packaging Quantity
- 25
- Packing Quantity
- 1
- Outer diameter
- 40 mm
- Length
- 40 mm
- Bolt dimension (metric)
- 8
- Country of origin
- France
Standards & Compliance
- HS Code
- 8546.90
Cross References
- EAN 3479775420509
- SAP 1000767130
- Code 8560493
Product Documentation
Document preview: nVent ERIFLEX ISOTP40F8M8 Low Voltage Male/Female Insulators, 1.575" — Specification sheet
