Product Description
Elpress 5204-011100 PVX1300DB.
Technical Specifications
- Manufacturer part number (MPN)
- 5204-011100
- EAN / GTIN
- 7393487061200
- Sales unit
- pcs
- Article number
- 5204-011100
- Type designation
- PVX1300DB
- Delivery box
- Plastic case
- Working temperature, Min (°C)
- -20
- Working temperature, Max (°C)
- 40
- Crimp geometries
- Punch, Dual, Hexagonal, Oval
- Safety device
- Closed chassis
- Pressure monitoring via display
- Yes
- Work light
- Yes
- Charger
- Li-ion & Ni-MH 7.2-18V
- Charge time (min)
- 15
- Battery
- Li-Ion Makita, 5,0Ah, 18V
- No. of batteries
- 2
- Crimp time (s)
- 4-12, depending on size
- Crimps/charge
- 60-120 depending on size and temperature
- AWG/MCM Stranded Al
- 6 AWG - 700 MCM
- AWG/MCM Solid Al
- 6 AWG - 450 MCM
- AWG/MCM Cu
- 8 AWG - 700 MCM
- mm² Stranded Al
- 16-400
- mm² Solid Al
- 16-240
- mm² Cu
- 10-400
- Crimp range Cu-terminals min (mm²)
- 10
- Crimp range Cu-terminals max (mm²)
- 400
- Crimp range C-connectors min (mm²)
- 6x2
- Crimp range C-connectors max (mm²)
- 120x2
- Crimp range Al-terminals min (mm²)
- 16
- Crimp range Al-terminals max (mm²)
- 400
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Accumulator-hydraulic
- Compression shape
- Other
- Cross section, Min (mm²)
- 10
- Cross section, Max (mm²)
- 400
- AWG-range, Min
- 8
- AWG-range, Max
- 700
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Compression force, Min (kN)
- 124
- Compression force, Max (kN)
- 124
- Length (mm)
- 412
- Pieces per pack
- 1
- Net weight (kg)
- 5.1
- Height Pack (mm)
- 240
- Depth Pack (mm)
- 470
- Width Pack (mm)
- 580
- Cross section
- 10–400 mm²
- Compression force
- 0–13 kN
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 7393487061200
- SAP 1200076242
- Code 81922151
Product Documentation

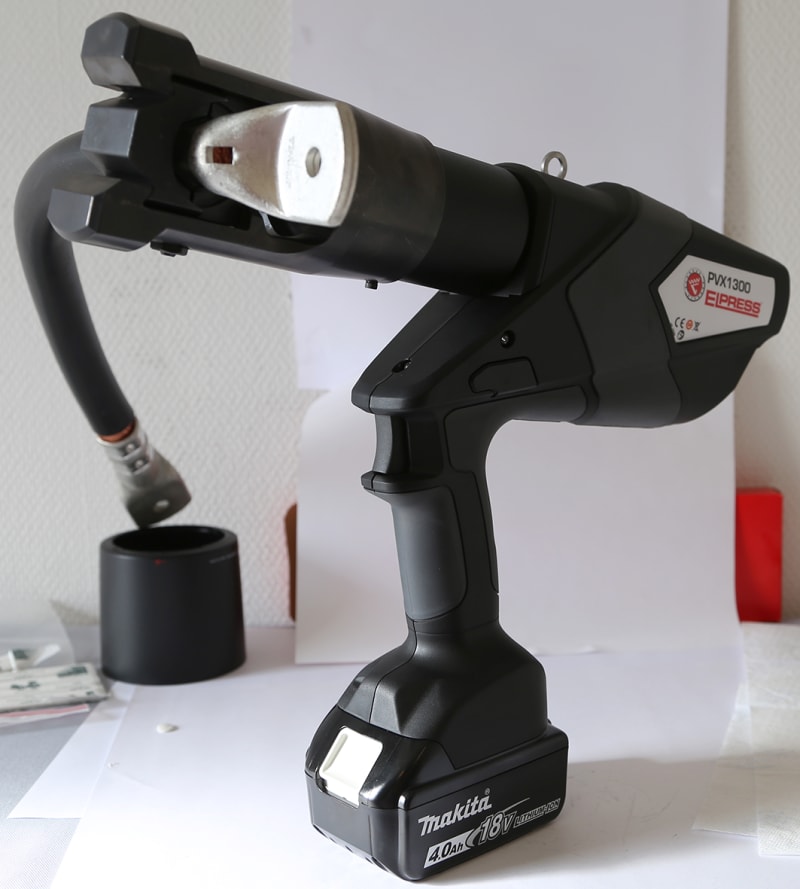

Document preview: Pressverktyg 13 t -2 batteries (5204-011100) — Specification sheet
More from Elpress
Elpress
Elpress A10-14ET2 Twin Insulated End Ferrule 2 × 10 mm² 14 mm
Elpress
Elpress MINI PVL350 battery-hydraulic crimping tool, Cu 4–95 mm²
Elpress
Elpress Crimping die for wire-end ferrules (OEB3550)
Elpress

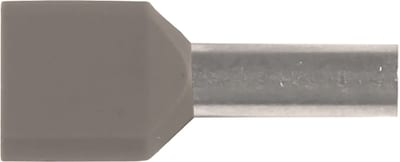

Elpress A4-12ET2 Twin Insulated End Ferrule 2 × 4 mm² 12 mm
