Product Description

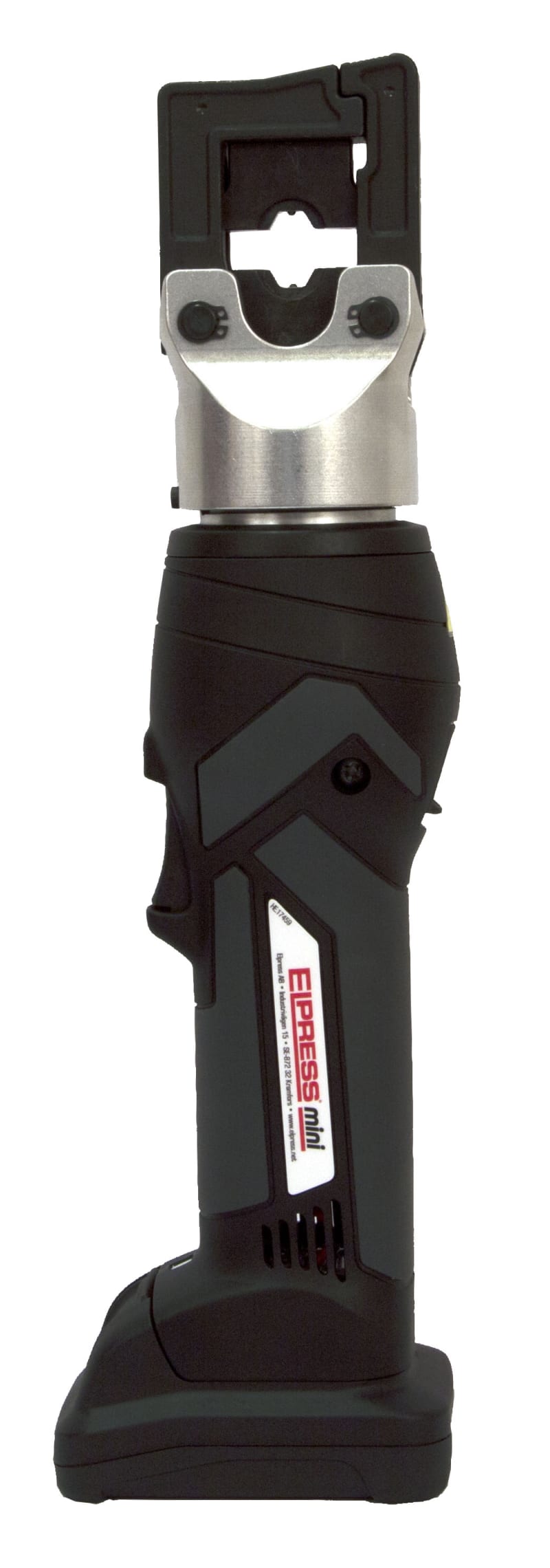

Elpress MINI PVL350 battery-powered electro-hydraulic crimping tool. Crimping force 35 kN (3.5-tonne system); 10.8 V Li-Ion battery, approximately 100–150 crimps per charge; crimp cycle about 3–4 seconds. Rotatable flip-top head for die changes in confined spaces. Crimps tube terminals and through-connectors type KR/KS/KRF/KSF/KRT/KST 10–70 mm² and KRD/KSD up to 95 mm² with MB dies.
Technical Specifications
- Manufacturer part number (MPN)
- PVL350
- EAN / GTIN
- 7393487059849
- Sales unit
- pcs
- Article number
- 5204-010500
- Type designation
- PVL350
- Delivery box
- Plastic case
- Working temperature, Min (°C)
- -10
- Working temperature, Max (°C)
- 40
- Crimp geometries
- Hexagonal, Oval
- Charger
- Li-ion
- Charge time (min)
- 40
- Battery
- 10,8V, 2,0Ah Li-Ion
- No. of batteries
- 1
- Crimps/charge
- 100-150 depending on size and temperature
- AWG/MCM Cu
- 12 - 2/0 AWG
- mm² Cu
- 4-70
- mm² C-sleeve Cu Range, Min
- 12
- mm² C-sleeve Cu Range, Max
- 50
- mm² KR/KS, KRF/KSF
- 4-70
- mm² KRT/KST
- 10-70
- mm² KRD/KSD
- 4-95
- Crimp range C-connectors min (mm²)
- 12
- Crimp range C-connectors max (mm²)
- 50
- Suitable for
- Cable lugs and connectors
- Construction/operation
- Accumulator-hydraulic
- Compression shape
- Universal (exchangeable inserts)
- With locking device (for mechanical tools)
- Yes
- Cross section, Min (mm²)
- 4
- Cross section, Max (mm²)
- 70
- AWG-range, Min
- 12
- With automatic return
- Yes
- Inserts exchangeable
- Yes
- Compression force, Min (kN)
- 35
- Compression force, Max (kN)
- 35
- Length (mm)
- 360
- Pieces per pack
- 1
- Net weight (kg)
- 1.6
- Height Pack (mm)
- 130
- Depth Pack (mm)
- 450
- Width Pack (mm)
- 420
- Cross section
- 10–95 mm²
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 7393487059849
- SAP 1000795625
- Code 81417432
Product Documentation
