Product Description

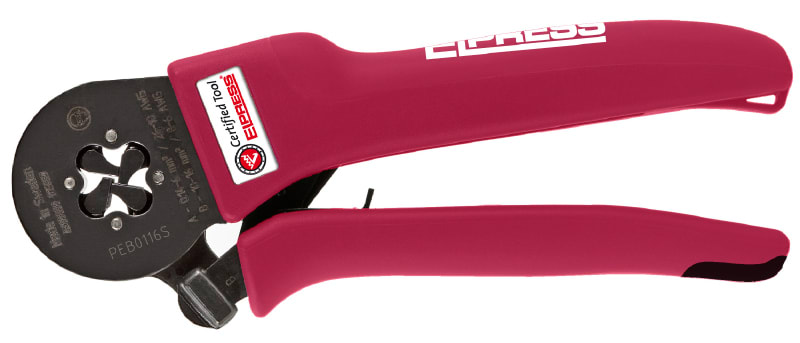

The PEB0116S is a mechanical hand crimping tool from Elpress for cable end sleeves (bootlace ferrules) from 0.14 to 16 mm² / 26-6 AWG. A square-compression die and an integrated ratchet prevent release until the crimp cycle is complete, giving repeatable terminations for control-cabinet wiring. Overall length is 176 mm and maximum crimp force is 4.5 kN; supplied in a plastic case.
Technical Specifications
- Manufacturer part number (MPN)
- PEB0116S
- EAN / GTIN
- 7393487059634
- Sales unit
- pcs
- Article number
- 5114-509100
- Type designation
- PEB0116S
- Ratchet function that does not trigger until completed crimp
- Yes
- Delivery box
- Plastic case
- Crimp geometries
- Square
- AWG/MCM Cu
- 26 - 6 AWG
- mm² Cu
- 0,14-16,0
- Suitable for
- Cable end sleeves
- Construction/operation
- Mechanic
- Compression shape
- Square compression
- With locking device (for mechanical tools)
- Yes
- Cross section, Min (mm²)
- 0.14
- Cross section, Max (mm²)
- 16
- AWG-range, Min
- 26
- AWG-range, Max
- 6
- With automatic return
- Yes
- Cycle time, Min (s)
- 0.45
- Compression force, Max (kN)
- 4.5
- Length (mm)
- 176
- Pieces per pack
- 1
- Net weight (kg)
- 0.371
- Height Pack (mm)
- 33
- Depth Pack (mm)
- 270
- Width Pack (mm)
- 105
- Cross section
- 0.14–16 mm²
- AWG-range
- 26–6
- Inserts exchangeable
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 7393487059634
- SAP 1200021620
- Code 81406727
Product Documentation
More from Elpress
Elpress

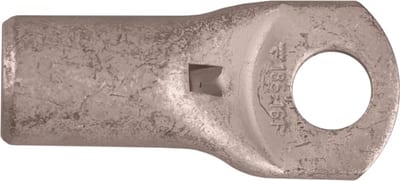

Elpress KRF185-12 Copper Tube Cable Lug 185 mm² M12
Elpress

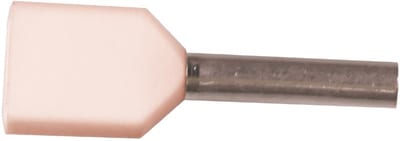

Elpress A0,5-8ET2 Twin Insulated End Ferrule 2 × 0.5 mm² 8 mm
Elpress
Bakkeholder FOR CU
V1330
Elpress

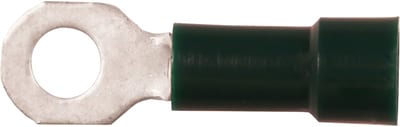

Elpress Ring terminal insulated, green (PC), 0,75mm², Ø4mm hole, length 21mm, width 7,5mm
A0843R
Elpress
Elpress KRF95-10-90GR Copper 90° Angled Tube Cable Lug 95 mm² M10
Elpress

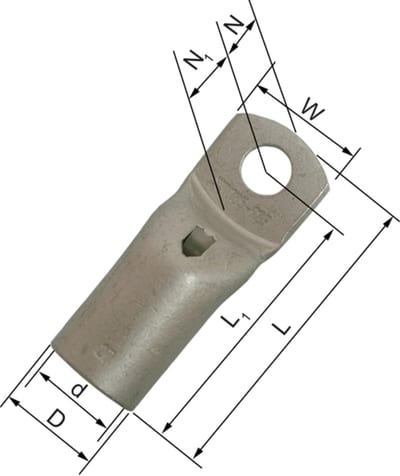

Elpress KRFN70-8 Copper Tube Cable Lug (Narrow Palm) 70 mm² M8
