Product Description

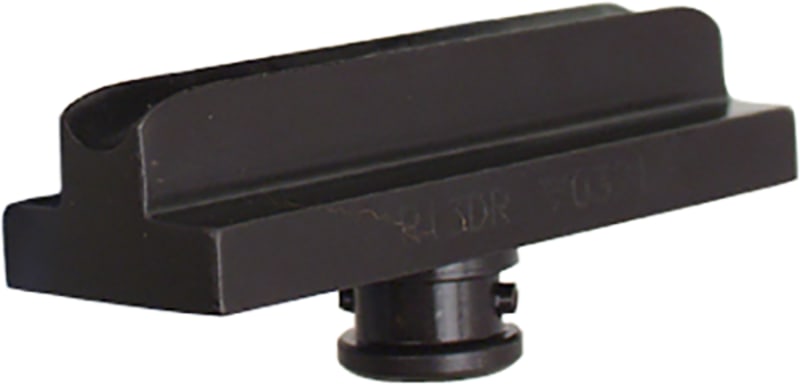

Elpress round-crimping punch. Part of the Elpress hydraulic crimping system for indent (round) crimping of aluminium conductors. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 5335-017600
- EAN / GTIN
- 7393487002920
- Sales unit
- pcs
- Article number
- 5335-017600
- Type designation
- R28DR
- Punch holder required
- Yes
- mm² Stranded Al
- 500
- Application
- Pipe cable lug and connectors
- Compression shape
- Round compression
- Cross section, Min (mm²)
- 500
- Cross section, Max (mm²)
- 500
- AWG-range, Min
- 14
- AWG-range, Max
- 14
- Pieces per pack
- 1
- Net weight (kg)
- 0.615
- Height Pack (mm)
- 87
- Depth Pack (mm)
- 141
- Width Pack (mm)
- 86
- Cross section
- 500 mm²
- AWG-range
- 1000
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487002920
- SAP 1000026071
- Code 8205974
