Elpress

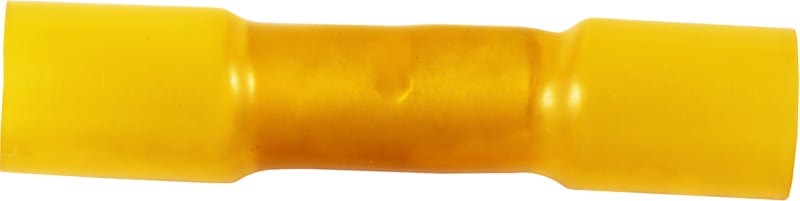

Elpress A4650SKW Through Connector with Heat-Shrink Insulation, 4-6 mm²
Part numberA4650SKWEAN / GTIN7393487004795HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A4650SKW Insulated krympskarv.
Technical Specifications
- Manufacturer part number (MPN)
- A4650SKW
- EAN / GTIN
- 7393487004795
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Article number
- 7288-228700
- Type designation
- A4650SKW
- d (mm)
- 6.5
- L (mm)
- 37.5
- s (mm) - strip length
- 9
- Insulation material
- PA
- AWG/MCM Cu
- 12 - 10 AWG
- mm² Cu
- 4-6
- Model
- Normal version
- Surface protection
- Tin plated
- Insulation
- Fully isolated
- Colour insulation
- Yellow
- Material
- Copper
- AWG-range, Min
- 12
- AWG-range, Max
- 10
- Nominal cross section, Min (mm²)
- 4
- Pieces per pack
- 25
- Net weight (kg)
- 0.002
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Type of connection
- Cross connector
- Oil stop/centre bar
- No
- For pull protected connections
- No
- Voltage level
- Up to 600 V
- Nominal cross section
- 4–6 mm²
- Suitable for fine strand conductors
- Yes
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Country of origin
- Mexico
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004795
- SAP 1000044556
- Code 8776646
Product Documentation
Document preview: Elpress A4650SKW Through Connector with Heat-Shrink Insulation, 4-6 mm² — Specification sheet
