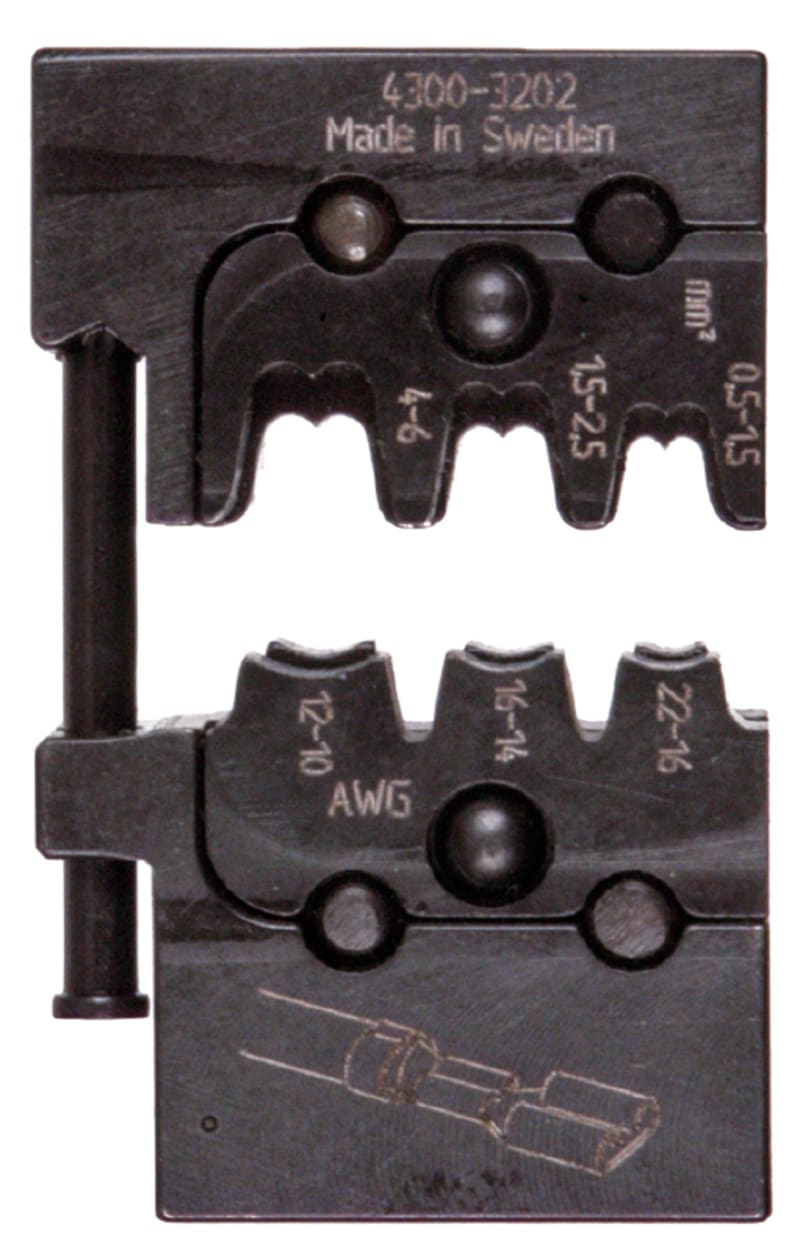

Elpress Roll-crimp die jaw for uninsulated connectors (ORB0560)
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress roll-crimp die jaw for uninsulated connectors. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- ORB0560
- EAN / GTIN
- 7393487035096
- Sales unit
- pcs
- Article number
- 5119-314600
- Type designation
- ORB0560
- Crimp geometries
- Roll
- Application (connector type)
- Uninsulated terminals
- mm² Cu
- 0,5-6
- Application
- Not isolated cable connections
- Compression shape
- Roll compression (shrinking)
- Cross section, Min (mm²)
- 0.5
- Cross section, Max (mm²)
- 6
- AWG-range, Min
- 20
- AWG-range, Max
- 9
- Pieces per pack
- 1
- Net weight (kg)
- 0.078
- Height Pack (mm)
- 115
- Depth Pack (mm)
- 25
- Width Pack (mm)
- 73
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487035096
- SAP 1000045303
- Code 8827198
Product Documentation
More from Elpress
Elpress
Elpress AKK95-16 Aluminium-Copper Bimetallic Compression Cable Lug 95 mm² M16
Elpress
SC240/PEN (7322-004200)
Elpress
LV1300-AL/CU-ADV-KIT (7912-002100)
Elpress
Bakkesett 120 CU (KB22)
Elpress
Bakkesett 150 CU (KB25)
Elpress
A2519SR-CP (7278-254603)
Elpress
Miniback för KRF/KSF 70
MB17
Elpress
Elpress AKS185-95 Aluminium-Copper Bimetallic Through Connector 185 mm² Al / 95 mm² Cu
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ORB0560?
- ORB0560 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is ORB0560.
- What is the HS code for ORB0560?
- The customs tariff (HS) code for ORB0560 is 8207.30.
- Who manufactures ORB0560?
- ORB0560 is a Elpress product in the Electrical Components range.
- Is a datasheet available for ORB0560?
- Yes — the ORB0560 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ORB0560?
- The minimum order quantity is 1.
- Is ORB0560 available?
- Yes — ORB0560 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
