Elpress

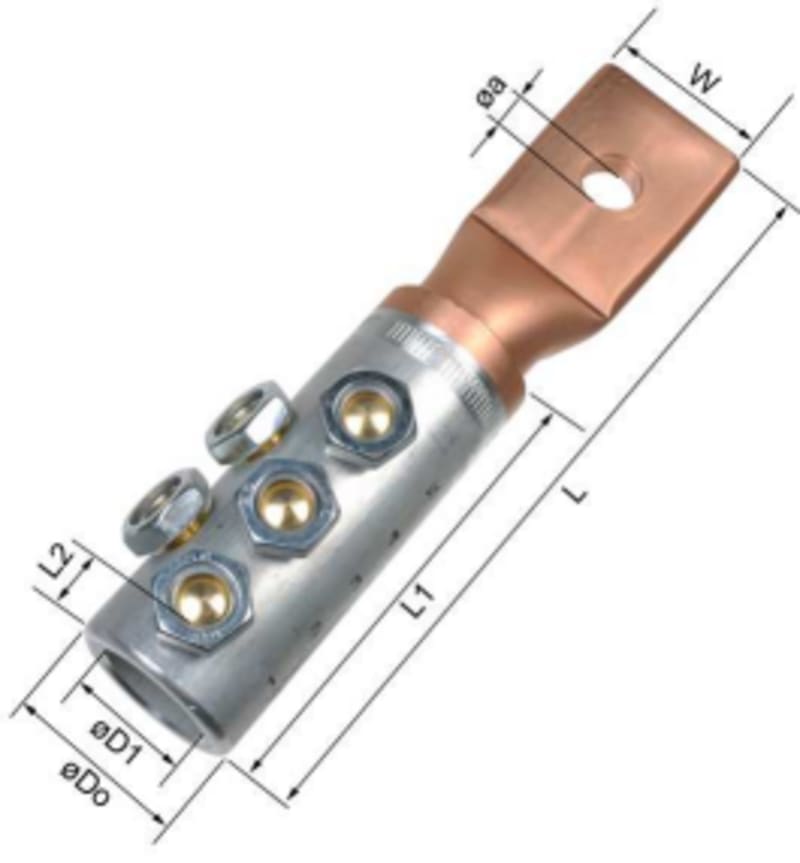

Elpress SL400R240S-16 Shearbolt Terminal, Reversible Screw
Part numberSL400R240S-16EAN / GTIN7393487033252HS code8536.90
Fasteners & Hardware
Screws & Bolts
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress SL400R240S-16 SCREW CABLE LUG 400-240 MM² M16.
Technical Specifications
- Manufacturer part number (MPN)
- SL400R240S-16
- EAN / GTIN
- 7393487033252
- Sales unit
- pcs
- Article number
- 7334-010900
- Type designation
- SL400R240S-16
- a (mm)
- 16
- W (mm)
- 41.5
- N (mm)
- 21
- d (mm)
- 25.8
- L1 (mm)
- 103
- L (mm)
- 182
- t (mm) - palm thickness
- 9.6
- s (mm) - strip length
- 97
- Screw
- M16
- Max voltage (kV)
- 36
- Cable type Round (mm²)
- 300-400
- Cable type Sector (mm²)
- 240
- Bolt dimension metric (M)
- 16
- Nominal cross section copper, RM, Min (mm²)
- 300
- Nominal cross section copper, RM, Max (mm²)
- 400
- Nominal cross section copper, RE, Min (mm²)
- 300
- Nominal cross section copper, SM, Min (mm²)
- 240
- Nominal cross section copper, SM, Max (mm²)
- 240
- Nominal cross section aluminium, RE, Max (mm²)
- 400
- Nominal cross section aluminium, SM, Max (mm²)
- 240
- Nominal cross section aluminium, SE, Min (mm²)
- 240
- Nominal cross section aluminium, SE, Max (mm²)
- 240
- Pieces per pack
- 1
- Net weight (kg)
- 0.7
- Height Pack (mm)
- 34
- Depth Pack (mm)
- 220
- Width Pack (mm)
- 125
- Surface protection
- Bare
- With shear-off head
- No
- Bolt dimension (metric)
- 16
- Nominal cross section copper, RM
- 300–400 mm²
- Nominal cross section copper, RE
- 300–400 mm²
- Nominal cross section copper, SM
- 240 mm²
- Nominal cross section aluminium, RM
- 300–400 mm²
- Nominal cross section aluminium, RE
- 300–400 mm²
- Nominal cross section aluminium, SM
- 240 mm²
- Nominal cross section aluminium, SE
- 240 mm²
- Material conductor
- Aluminium/copper
- Min. AWG-size
- 600 kcmil
- Max. AWG-size
- 750 kcmil
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487033252
- SAP 1000416749
- Code 8499060
Product Documentation
Document preview: Elpress SL400R240S-16 Shearbolt Terminal, Reversible Screw — Specification sheet
More from Elpress
Elpress

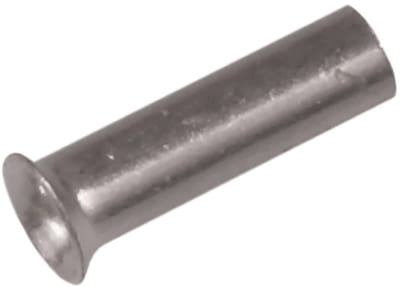

Elpress B0,75-8ET Uninsulated End Terminal, 0.75 mm²
Elpress

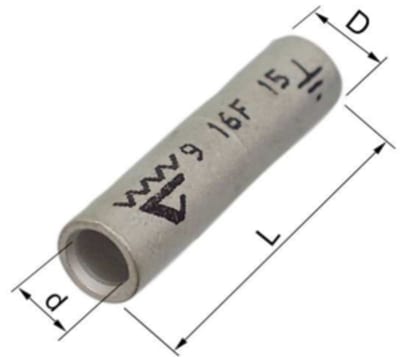

Elpress KSF16M Copper Compression Through Connector 16 mm², Central Partition
Elpress
Elpress Roll-crimp die jaw for uninsulated connectors (ORB0560)
Elpress

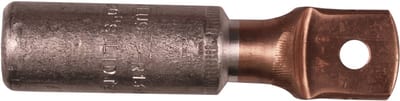

Elpress AKK95-16 Aluminium-Copper Bimetallic Compression Cable Lug 95 mm² M16
Elpress

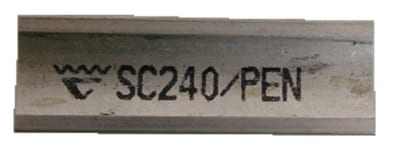

SC240/PEN (7322-004200)
Elpress

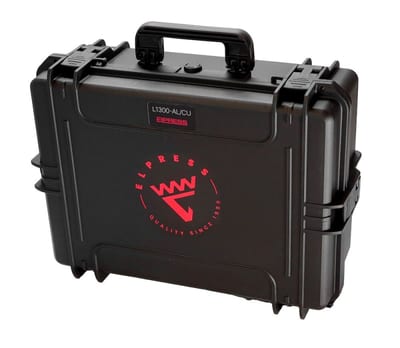

LV1300-AL/CU-ADV-KIT (7912-002100)
