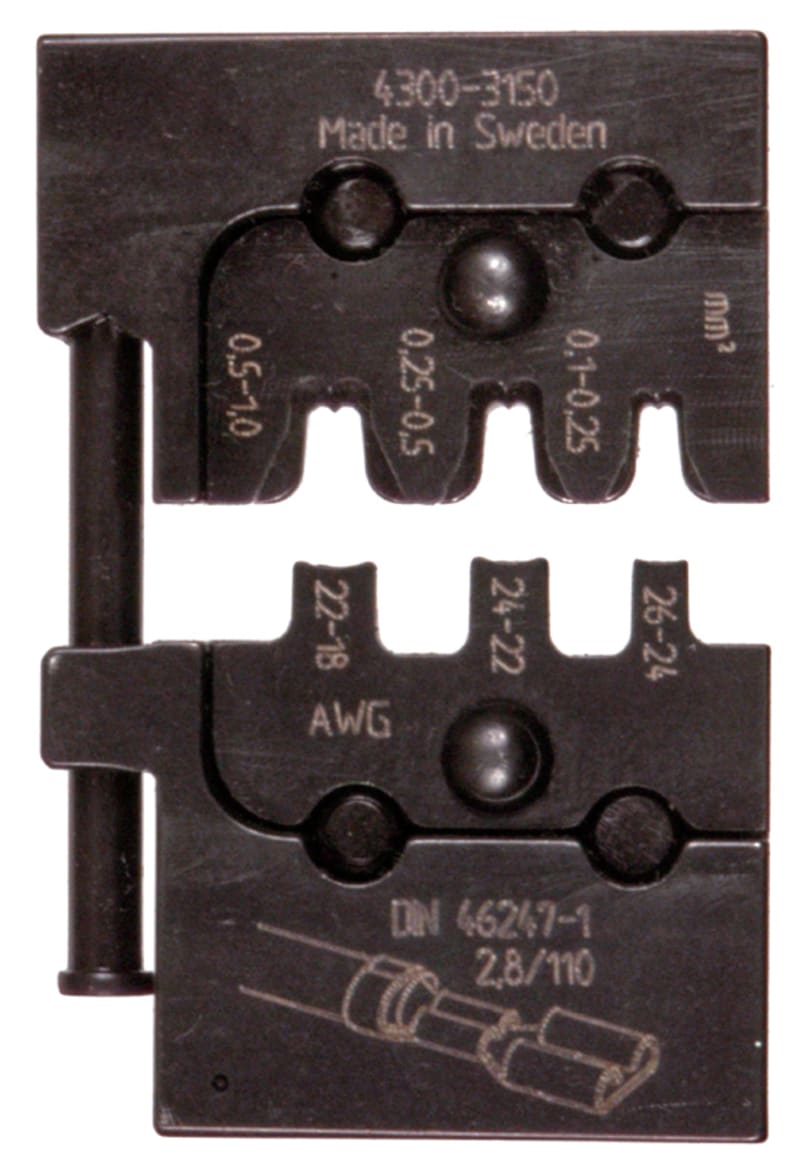

Elpress Roll-crimp die jaw for uninsulated connectors (ORB0110)
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress roll-crimp die jaw for uninsulated connectors. Part of the Elpress crimping tool system. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- ORB0110
- EAN / GTIN
- 7393487035072
- Sales unit
- pcs
- Article number
- 5119-315000
- Type designation
- ORB0110
- Crimp geometries
- Roll
- Application (connector type)
- Uninsulated terminals
- mm² Cu
- 0,1-1
- Application
- Not isolated cable connections
- Compression shape
- Roll compression (shrinking)
- Cross section, Min (mm²)
- 0.1
- Cross section, Max (mm²)
- 1
- AWG-range, Min
- 26
- AWG-range, Max
- 17
- Pieces per pack
- 1
- Net weight (kg)
- 0.072
- Height Pack (mm)
- 115
- Depth Pack (mm)
- 25
- Width Pack (mm)
- 73
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487035072
- SAP 1000066280
- Code 8914943
Product Documentation
More from Elpress
Elpress
Elpress Crimping die set (13DCB27)
Elpress
Elpress AS150-95 Aluminium Compression Through Connector 150 mm² / 95 mm²
Elpress
Elpress A4650SKW Through Connector with Heat-Shrink Insulation, 4-6 mm²
Elpress
Elpress B0,25-5ET Uninsulated End Terminal, 0.25 mm²
Elpress
Elpress Punch holder, aluminium
V2540
Elpress
Elpress B6-15ET Uninsulated End Terminal, 6 mm²
Elpress
Elpress Mobile Box Accessory Case with 5 Trays
MOBILE BOX
Elpress
Elpress SL400R240S-16 Shearbolt Terminal, Reversible Screw
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ORB0110?
- ORB0110 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is ORB0110.
- What is the HS code for ORB0110?
- The customs tariff (HS) code for ORB0110 is 8207.30.
- Who manufactures ORB0110?
- ORB0110 is a Elpress product in the Electrical Components range.
- Is a datasheet available for ORB0110?
- Yes — the ORB0110 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ORB0110?
- The minimum order quantity is 1.
- Is ORB0110 available?
- Yes — ORB0110 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
