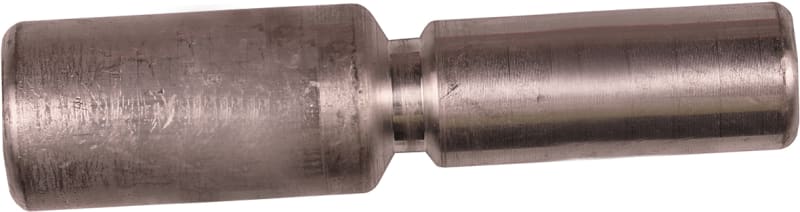

Elpress AS150-95 Aluminium Compression Through Connector 150 mm² / 95 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AS150-95 — aluminium compression through connector (splice) with internal partition for jointing a 150 mm² aluminium conductor to a 95 mm² aluminium conductor of a different cross-section. Made from solid aluminium (Al 99.7%); the partition acts as a central cable stop. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) aluminium conductors; tested to IEC 61238-1 within the Elpress crimp system.
Technical Specifications
- Type
- Aluminium compression through connector with partition
- Conductor cross-section
- 150 mm² to 95 mm² (different areas)
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) aluminium
- Material
- Solid aluminium (Al 99.7%)
- Feature
- Internal partition (central cable stop)
- Crimp
- Two compression crimps per side (observe Elpress crimp sequence)
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AS150-95
- EAN / GTIN
- 7393487009264
- Sales unit
- pcs
- Package quantity
- 12 pcs
- HS code
- 8536.90
- Article number
- 7313-409200
- Type designation
- AS150-95
- s1 (mm)
- 60
- d (mm)
- 15.8
- L (mm)
- 130
- d1 (mm)
- 12.5
- s (mm) - strip length
- 60
- AWG/MCM Stranded Al
- 3/0 AWG - 300 MCM
- AWG/MCM Solid Al
- 350250
- mm² Stranded Al
- 150-95
- mm² Solid Al
- 185-120
- Oil stop/centre bar
- Yes
- Voltage level
- Other
- Cross section shape
- Round/sector-shaped
- Reduced Al nominal cross section (mm²)
- 95
- Nominal cross section aluminium, SE, Min (mm²)
- 120
- Nominal cross section aluminium, SE, Max (mm²)
- 185
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 150
- Pieces per pack
- 12
- Net weight (kg)
- 0.114
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487009264
- SAP 1000007743
- Code 8475288
Product Documentation
