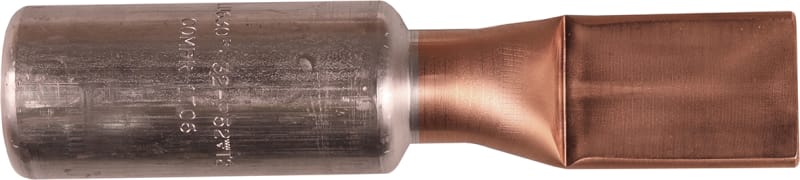

Elpress AKK630A-1 Aluminium-Copper Bimetallic Compression Cable Lug 630 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AKK630A-1 — bimetallic (AlCu) compression cable lug for terminating a 630 mm² aluminium conductor (bolt-hole variant -1). The aluminium barrel is friction-welded to a copper palm from solid material, so an aluminium conductor can be connected directly to a copper busbar or apparatus without a separate bimetal washer. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors; two compression crimps are made on the aluminium barrel. Tested to IEC 61238-1 within the Elpress crimp system.
Technical Specifications
- Type
- AlCu bimetallic compression cable lug
- Conductor cross-section
- 630 mm² (aluminium)
- Bolt-hole configuration
- variant -1 (Elpress AKK630A series)
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Friction-welded solid aluminium barrel + electrolytic copper palm
- Connection
- Aluminium conductor to copper busbar / apparatus
- Crimp
- Two compression crimps on the aluminium barrel
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AKK630A-1
- EAN / GTIN
- 7393487020153
- Sales unit
- pcs
- Package quantity
- 3 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487020153
- SAP 1000006303
- Code 8473472
Product Documentation
More from Elpress
Elpress
Elpress A1-8ET Insulated End Ferrule 1 mm² 8 mm
Elpress
B1502HA (7193-500600)
Elpress
Elpress A4643G Insulated Flanged Fork (Spade) Terminal 4–6 mm² M4 (Yellow)
Elpress
Helisol Flatstift O,5-1,5
A1503FLSF8
Elpress
Elpress A6-14ET2 Twin Insulated End Ferrule 2 × 6 mm² 14 mm
Elpress
Elpress AK150-12 Aluminium Compression Cable Lug 150 mm² M12
Elpress
Elpress A4653G Insulated Flanged Fork (Spade) Terminal 4–6 mm² M5 (Yellow) 7278-272203
Elpress
Elpress A1503FLSF5 Fully Insulated Receptacle, Rolled Type, 0.5-1.5 mm²
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AKK630A-1?
- AKK630A-1 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is AKK630A-1.
- What is the HS code for AKK630A-1?
- The customs tariff (HS) code for AKK630A-1 is 8536.90.
- Who manufactures AKK630A-1?
- AKK630A-1 is a Elpress product in the Electrical Components range.
- Is a datasheet available for AKK630A-1?
- Yes — the AKK630A-1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AKK630A-1?
- The minimum order quantity is 1.
- Is AKK630A-1 available?
- Yes — AKK630A-1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
