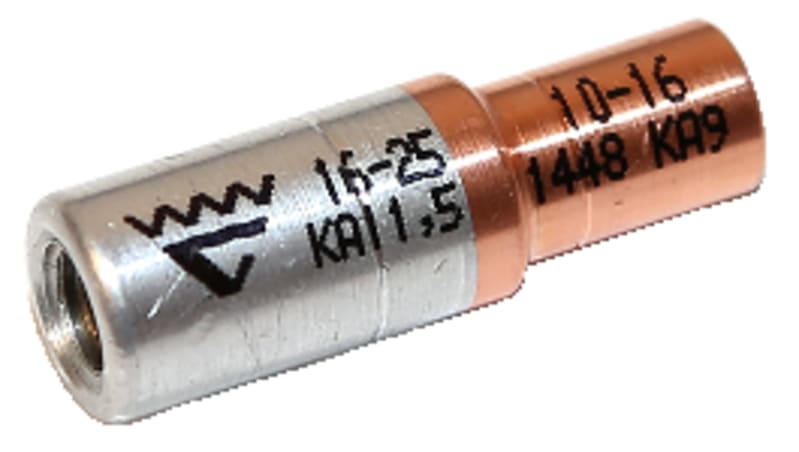

Elpress AKS1625-1016 Aluminium-Copper Bimetallic Transition Through Connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AKS1625-1016 — bimetallic (AlCu) transition through connector for jointing small-section aluminium conductors to copper conductors. Aluminium is friction-welded to copper from solid material, allowing a direct Al-to-Cu splice. Tested to IEC 61238-1 within the Elpress crimp system.
Technical Specifications
- Type
- AlCu bimetallic transition through connector (splice)
- Function
- Joints small-section aluminium conductors to copper conductors
- Material
- Friction-welded solid aluminium + electrolytic copper
- Crimp
- Two crimps on the aluminium side, one on the copper side
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AKS1625-1016
- EAN / GTIN
- 7393487049253
- Sales unit
- pcs
- Package quantity
- 48 pcs
- HS code
- 8536.90
- Article number
- 7333-413000
- Type designation
- AKS1625-1016
- s1 (mm)
- 17
- d (mm)
- 6.2
- L (mm)
- 36.5
- d1 (mm)
- 6
- s (mm) - strip length
- 19
- AWG/MCM Stranded Al
- 6 - 4 AWG
- AWG/MCM Cu
- 8 - 6 AWG
- mm² Stranded Al
- 16-25
- mm² Cu
- 10-16
- Winding (mm²)
- Al 16-30
- Oil stop/centre bar
- Yes
- Voltage level
- Other
- Cross section shape
- Round
- Nominal cross section aluminium, SE, Min (mm²)
- 16
- Nominal cross section aluminium, SE, Max (mm²)
- 25
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 25
- Pieces per pack
- 48
- Net weight (kg)
- 0.011
- Height Pack (mm)
- 85
- Depth Pack (mm)
- 90
- Width Pack (mm)
- 70
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487049253
- SAP 1000679206
- Code 8576530
