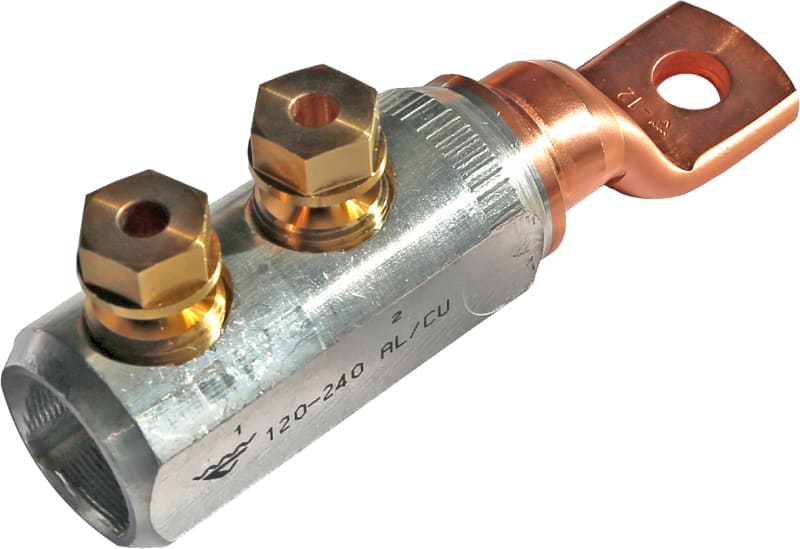

Elpress SL240N-10-12 Shearbolt Terminal, Pre-Assembled Screw
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress SL240N-10-12 Al-Cu screw cable lug 120-240mm².
Technical Specifications
- Manufacturer part number (MPN)
- SL240N-10-12
- EAN / GTIN
- 7393487083554
- Sales unit
- pcs
- Article number
- 7334-017000
- Type designation
- SL240N-10-12
- W (mm)
- 31.5
- N (mm)
- 15
- d (mm)
- 25
- L1 (mm)
- 86
- L (mm)
- 144.5
- L2 (mm)
- 31
- t (mm) - palm thickness
- 7.6
- s (mm) - strip length
- 76
- Screw
- M12, M10
- Max voltage (kV)
- 1
- Screen conductor (with filling piece), Min (mm²)
- 29-146 (SC240/PEN)
- Screen conductor (with filling piece), Max (mm²)
- 29-146 (SC240/PEN)
- Cable type Round (mm²)
- 120-240
- Cable type Sector (mm²)
- 120-240
- With shear-off head
- Yes
- Bolt dimension metric (M)
- 12.1
- Nominal cross section copper, RM, Min (mm²)
- 120
- Nominal cross section copper, RM, Max (mm²)
- 240
- Pieces per pack
- 1
- Net weight (kg)
- 0.429
- Height Pack (mm)
- 33
- Depth Pack (mm)
- 220
- Width Pack (mm)
- 130
- Surface protection
- Bare
- Bolt dimension (metric)
- 12
- Nominal cross section copper, RM
- 120–240 mm²
- Nominal cross section copper, RE
- 120–240 mm²
- Nominal cross section copper, SM
- 120–240 mm²
- Nominal cross section aluminium, RM
- 120–240 mm²
- Nominal cross section aluminium, RE
- 120–240 mm²
- Nominal cross section aluminium, SM
- 120–240 mm²
- Nominal cross section aluminium, SE
- 120–240 mm²
- Material conductor
- Aluminium/copper
- Min. AWG-size
- 250 kcmil
- Max. AWG-size
- 500 kcmil
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487083554
- SAP 1200584492
- Code 82961371
