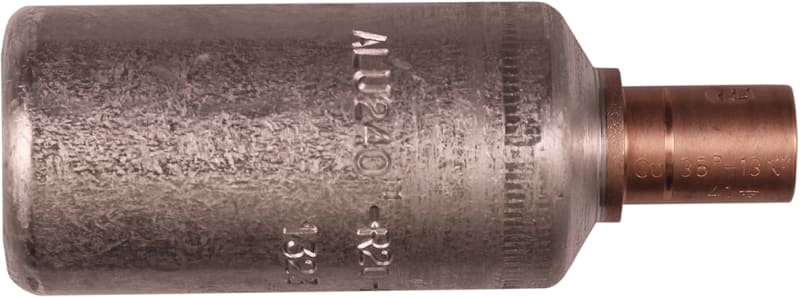

Elpress AKS240-120 Aluminium-Copper Bimetallic Through Connector 240 mm² Al / 120 mm² Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AKS240-120 — bimetallic (AlCu) through connector for jointing a 240 mm² aluminium conductor to a 120 mm² copper conductor. Aluminium is friction-welded to copper from solid material, giving a direct Al-to-Cu splice without an intermediate transition washer. Two compression crimps are made on the aluminium side and one on the copper side. Accepts stranded/solid aluminium (IEC 60228 Class 1/2) and stranded copper (Class 2) conductors; tested to IEC 61238-1 within the Elpress crimp system. Range 16-400 mm².
Technical Specifications
- Type
- AlCu bimetallic through connector (splice)
- Aluminium conductor
- 240 mm²
- Copper conductor
- 120 mm²
- Material
- Friction-welded solid aluminium + electrolytic copper
- Crimp
- Two crimps on the aluminium side, one on the copper side
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AKS240-120
- EAN / GTIN
- 7393487009974
- Sales unit
- pcs
- Package quantity
- 12 pcs
- HS code
- 8536.90
- Article number
- 7333-403000
- Type designation
- AKS240-120
- s1 (mm)
- 35
- d (mm)
- 19.8
- L (mm)
- 104
- d1 (mm)
- 17
- s (mm) - strip length
- 61
- AWG/MCM Stranded Al
- 450 MCM
- AWG/MCM Cu
- 250 MCM
- mm² Stranded Al
- 240
- mm² Cu
- 120
- Oil stop/centre bar
- Yes
- Voltage level
- Other
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 240
- Pieces per pack
- 12
- Net weight (kg)
- 0.141
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487009974
- SAP 1000074250
- Code 8742767
