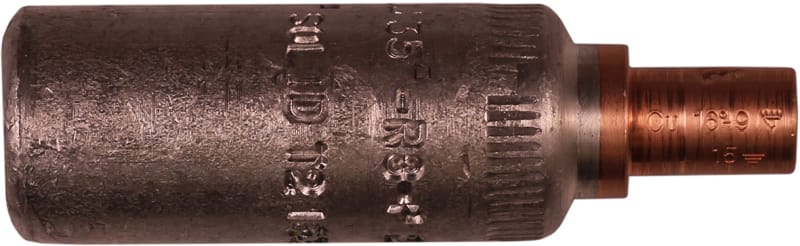

Elpress AKS35-16 Aluminium-Copper Bimetallic Through Connector 35 mm² Al / 16 mm² Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AKS35-16 — bimetallic (AlCu) through connector for jointing a 35 mm² aluminium conductor to a 16 mm² copper conductor. Aluminium is friction-welded to copper from solid material, giving a direct Al-to-Cu splice without an intermediate transition washer. Two compression crimps are made on the aluminium side and one on the copper side. Accepts stranded/solid aluminium (IEC 60228 Class 1/2) and stranded copper (Class 2) conductors; tested to IEC 61238-1 within the Elpress crimp system. Range 16-400 mm².
Technical Specifications
- Type
- AlCu bimetallic through connector (splice)
- Aluminium conductor
- 35 mm²
- Copper conductor
- 16 mm²
- Material
- Friction-welded solid aluminium + electrolytic copper
- Crimp
- Two crimps on the aluminium side, one on the copper side
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AKS35-16
- EAN / GTIN
- 7393487009707
- Sales unit
- pcs
- Package quantity
- 24 pcs
- HS code
- 8536.90
- Article number
- 7333-400300
- Type designation
- AKS35-16
- s1 (mm)
- 15
- d (mm)
- 8.5
- L (mm)
- 66
- d1 (mm)
- 6
- s (mm) - strip length
- 45
- AWG/MCM Stranded Al
- 2 AWG
- AWG/MCM Solid Al
- 10 AWG
- AWG/MCM Cu
- 6 AWG
- mm² Stranded Al
- 35
- mm² Solid Al
- 50
- mm² Cu
- 16
- Screen conductor (mm²)
- 15
- Oil stop/centre bar
- Yes
- Voltage level
- Other
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, SE, Min (mm²)
- 50
- Nominal cross section aluminium, SE, Max (mm²)
- 50
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 35
- Pieces per pack
- 24
- Net weight (kg)
- 0.041
- Height Pack (mm)
- 87
- Depth Pack (mm)
- 141
- Width Pack (mm)
- 86
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487009707
- SAP 1000064494
- Code 8730991
Product Documentation
