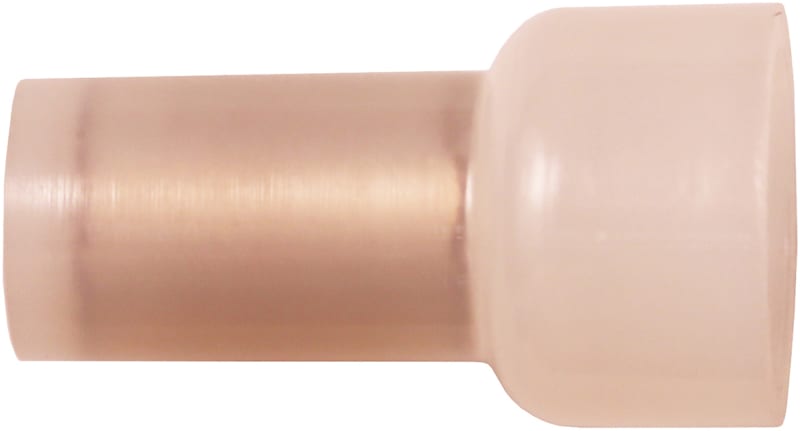

Elpress A2500E Fully Insulated End Connector Sleeve, 1-3 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A2500E End Socket, fully insulated clear (PA), 1,0-3,0mm,hole diameter Ø6,4mm, length 15,2mm.
Technical Specifications
- Manufacturer part number (MPN)
- A2500E
- EAN / GTIN
- 7393487004764
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7286-500400
- Type designation
- A2500E
- d (mm)
- 6.4
- L1 (mm)
- 8
- L (mm)
- 15.2
- s (mm) - strip length
- 8
- Insulation material
- PA
- Insulation colour
- Transparent (insulated terminals)
- Material
- Cu, Cu/Sn
- Easy-entry
- Yes
- AWG/MCM Cu
- 18 - 13 AWG
- mm² Cu
- 1-3
- Model
- Sleeve
- Halogen free
- Yes
- Insulation
- Fully isolated
- Colour insulation
- Other
- AWG-range, Min
- 18
- AWG-range, Max
- 13
- Nominal cross section, Min (mm²)
- 1
- Nominal cross section, Max (mm²)
- 3
- Material insulation
- PA (Polyamide)
- Pieces per pack
- 100
- Net weight (kg)
- 0.0008
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Surface protection
- Tinned
- Nominal cross section
- 1–3 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004764
- SAP 1000071452
- Code 8732695
Product Documentation
