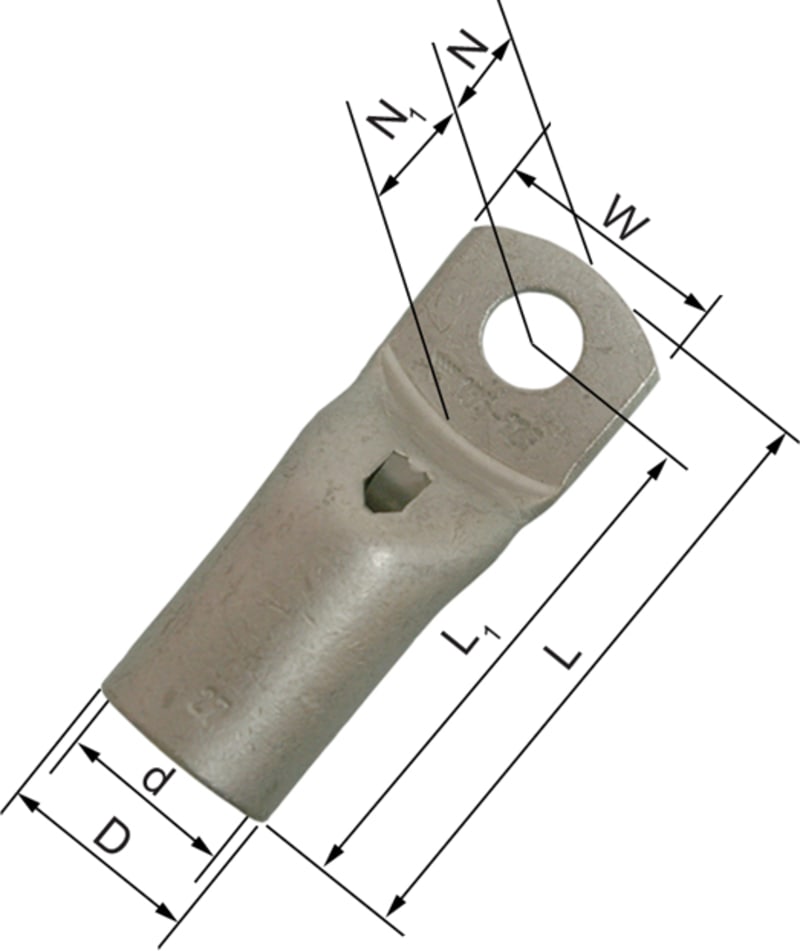

Elpress KRFN240A-10 Copper Tube Cable Lug (Narrow Palm) 240 mm² M10
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KRFN240A-10 — narrow-palm compression (crimp) tube cable lug for terminating a 240 mm² copper conductor onto an M10 stud. The palm is narrower than the standard KRF lug (and wider than KRFS), for terminals set at reduced centre distances. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a cable inspection hole. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors. Crimped with matching Elpress dies to a gas-tight, low-resistance connection tested to IEC 61238-1. Approvals: UL File E205350, DNV type approval.
Technical Specifications
- Type
- Compression (crimp) tube cable lug, narrow palm
- Conductor cross-section
- 240 mm²
- Stud / bolt hole
- M10
- Palm
- Narrow (narrower than KRF, wider than KRFS)
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5)
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Crimp system
- System Elpress, tested to IEC 61238-1
- Approvals
- UL File E205350, DNV type approval
- Manufacturer part number (MPN)
- KRFN240A-10
- EAN / GTIN
- 7393487044784
- Sales unit
- pcs
- Package quantity
- 10 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487044784
- SAP 1000416769
- Code 8499109
Product Documentation
More from Elpress
Elpress
Elpress 5112-509000 Mini Crimp Dies SA0760 for Insulated Terminals with Holder
Elpress
Elpress KRF70-12-90GR Copper 90° Angled Tube Cable Lug 70 mm² M12
Elpress
AK120-10 (7311-402600)
Elpress
Elpress A2535SKW-CP Duraseal Heat-Shrink Splice Sleeve
A2535skw-Cp
Elpress
Elpress A2537G Insulated Flanged Fork (Spade) Terminal 1.5–2.5 mm² M3.5 (Blue)
Elpress
Elpress KRF25-8-90GR Copper 90° Angled Tube Cable Lug 25 mm² M8
Elpress
Elpress KRF35-8-90GR Copper 90° Angled Tube Cable Lug 35 mm² M8
Elpress
Elpress KRF35-10-90GR Copper 90° Angled Tube Cable Lug 35 mm² M10
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KRFN240A-10?
- KRFN240A-10 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is KRFN240A-10.
- What is the HS code for KRFN240A-10?
- The customs tariff (HS) code for KRFN240A-10 is 8536.90.
- Who manufactures KRFN240A-10?
- KRFN240A-10 is a Elpress product in the Electrical Components range.
- Is a datasheet available for KRFN240A-10?
- Yes — the KRFN240A-10 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KRFN240A-10?
- The minimum order quantity is 1.
- Is KRFN240A-10 available?
- Yes — KRFN240A-10 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
