Product Description

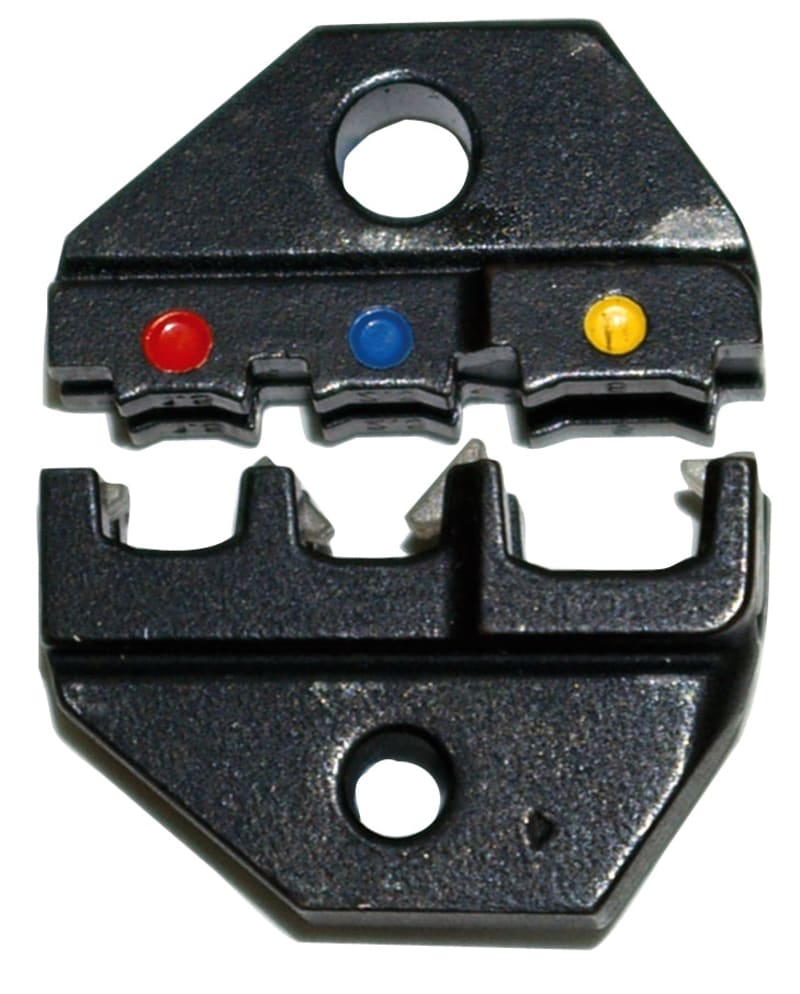

Elpress 5112-509000 (type SA0760) is a mini crimp-die set with holder for insulated cable terminals, producing an oval square-compression crimp on conductors from 0.5 to 6 mm² (AWG 20 to 10). It is intended for insulated connections and supplied as a single piece per pack.
Technical Specifications
- Manufacturer part number (MPN)
- 5112-509000 EAN / GTIN: 7393487028012 Sales unit: pcs Article number: 5112-509000 Type designation: SA0760 Crimp geometries: Oval Application (connector type): Pre-insulated terminals AWG/MCM Cu: 1/0 - 2/0 AWG mm² Cu: 0,5-6 Application: Insulated cable connections Compression shape: Square compression Cross section, Min (mm²): 0.5 Cross section, Max (mm²): 6 AWG-range, Min: 20 AWG-range, Max: 10 Pieces per pack: 1 Net weight (kg): 0.05 Height Pack (mm): 17 Depth Pack (mm): 50 Width Pack (mm): 34 Cross section: 0.5–6 mm² AWG-range: 20–10 Country of origin: Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487028012
- SAP 1000072321
- Code 8734348
Product Documentation
More from Elpress
Elpress

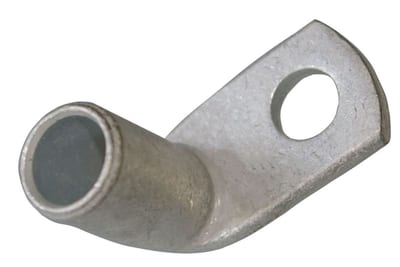

Elpress KRF70-12-90GR Copper 90° Angled Tube Cable Lug 70 mm² M12
Elpress

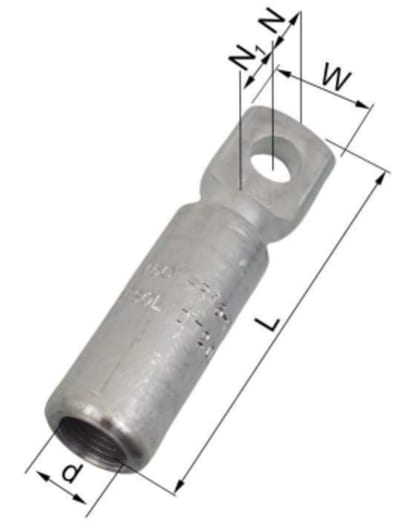

AK120-10 (7311-402600)
Elpress

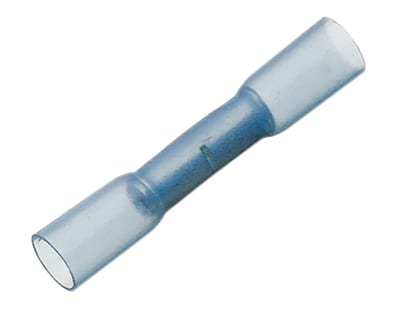

Elpress A2535SKW-CP Duraseal Heat-Shrink Splice Sleeve
A2535skw-Cp
Elpress

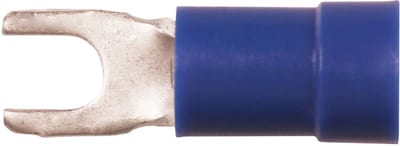

Elpress A2537G Insulated Flanged Fork (Spade) Terminal 1.5–2.5 mm² M3.5 (Blue)
Elpress
Elpress KRF25-8-90GR Copper 90° Angled Tube Cable Lug 25 mm² M8
Elpress
Elpress KRF35-8-90GR Copper 90° Angled Tube Cable Lug 35 mm² M8
Elpress
Elpress KRF35-10-90GR Copper 90° Angled Tube Cable Lug 35 mm² M10
Elpress

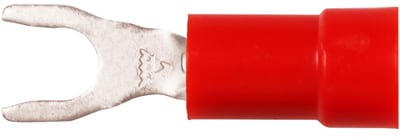

Elpress A1537G Insulated Flanged Fork (Spade) Terminal 0.5–1.5 mm² M3.5 (Red)
