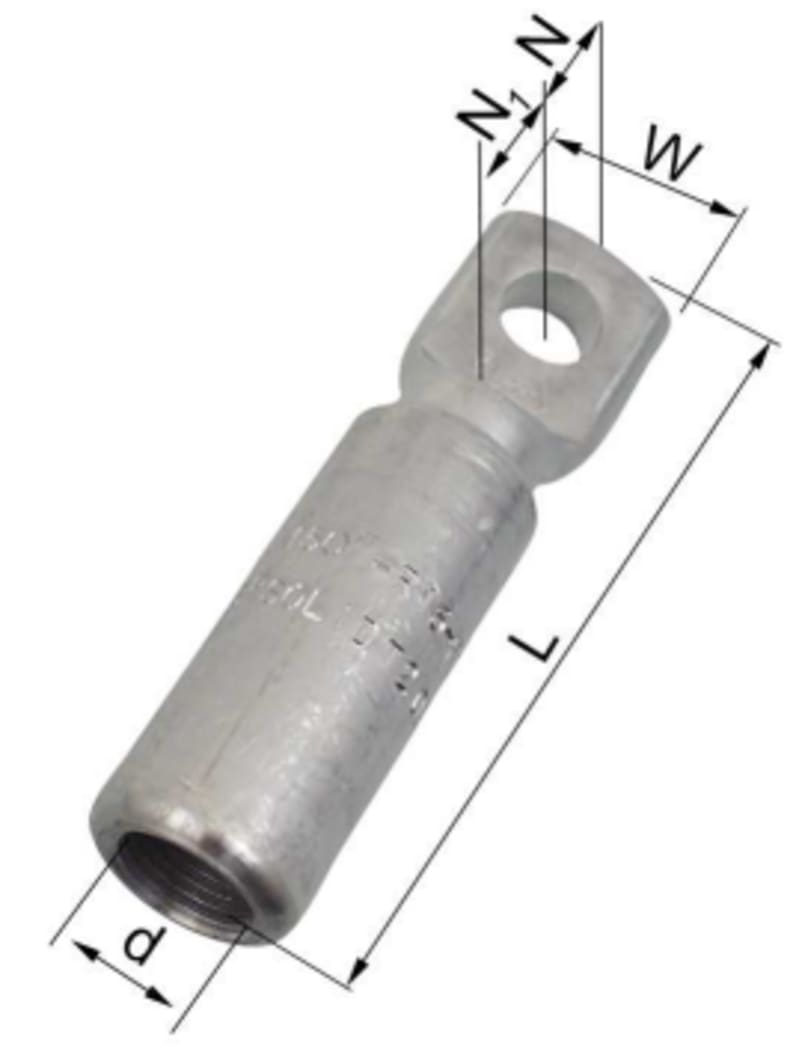

AK120-10 (7311-402600)
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress 7311-402600 CRIMP CABLE LUG ALU.
Technical Specifications
- Manufacturer part number (MPN)
- 7311-402600
- EAN / GTIN
- 7393487019843
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Article number
- 7311-402600
- Type designation
- AK120-10
- W (mm)
- 27
- N (mm)
- 14
- N1 (mm)
- 15
- P (mm)
- 29
- d (mm)
- 14
- L (mm)
- 104
- t (mm) - palm thickness
- 10.5
- s (mm) - strip length
- 60
- Screw
- M10
- AWG/MCM Stranded Al
- 4/0 AWG
- AWG/MCM Solid Al
- 300 MCM
- mm² Stranded Al
- 120
- mm² Solid Al
- 150
- Number of mounting holes
- 1
- Material
- Aluminium
- Bolt dimension metric (M)
- 10
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, SE, Min (mm²)
- 150
- Nominal cross section aluminium, SE, Max (mm²)
- 150
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 120
- Pieces per pack
- 12
- Net weight (kg)
- 0.082
- Height Pack (mm)
- 80
- Depth Pack (mm)
- 140
- Width Pack (mm)
- 176
- Longitudinal sealed
- Yes
- Bolt dimension (metric)
- 10
- Suitable for Al/St-cables
- No
- Sleeve form
- Short
- Cross section form
- Round
- Slender flange model
- Yes
- Nominal cross section aluminium, SE
- 150 mm²
- Nominal cross section aluminium, RM/SM
- 120 mm²
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487019843
- SAP 1200843194
- Code 84043682
Product Documentation
More from Elpress
Elpress
Elpress A2535SKW-CP Duraseal Heat-Shrink Splice Sleeve
A2535skw-Cp
Elpress
Elpress A2537G Insulated Flanged Fork (Spade) Terminal 1.5–2.5 mm² M3.5 (Blue)
Elpress
Elpress KRF25-8-90GR Copper 90° Angled Tube Cable Lug 25 mm² M8
Elpress
Elpress KRF35-8-90GR Copper 90° Angled Tube Cable Lug 35 mm² M8
Elpress
Elpress KRF35-10-90GR Copper 90° Angled Tube Cable Lug 35 mm² M10
Elpress
Elpress A1537G Insulated Flanged Fork (Spade) Terminal 0.5–1.5 mm² M3.5 (Red)
Elpress

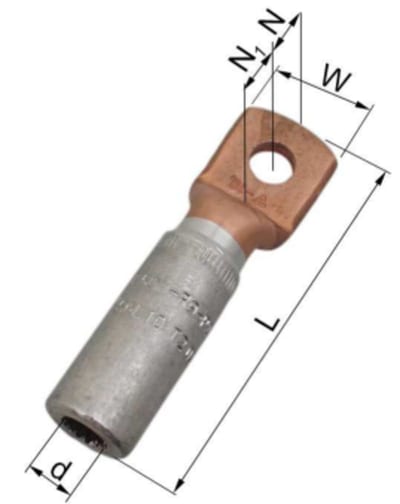

AKK500A-16 (7331-399400)
Elpress

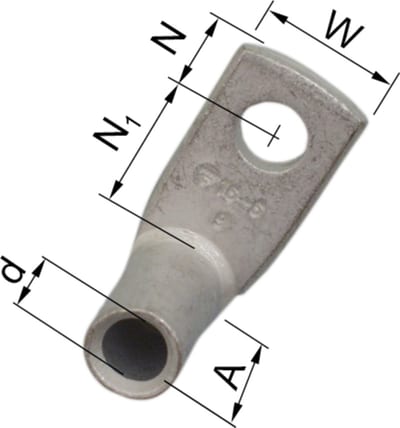

Elpress KRF16-8-90GR Copper 90° Angled Tube Cable Lug 16 mm² M8
