Elpress

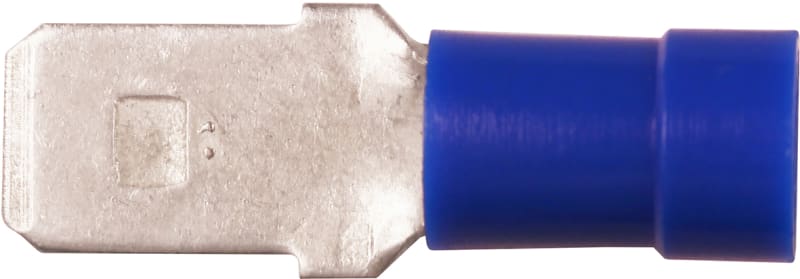

ISOL.FLATSTIFT 1,5-2,5MM2 (A2507H)
Part numberA2507HEAN / GTIN7393487004887HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A2507H Isolerat flat pin.
Technical Specifications
- Manufacturer part number (MPN)
- A2507H
- EAN / GTIN
- 7393487004887
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 1.5-2.5 mm²
- Article number
- 7459-341400
- Type designation
- A2507H
- W (mm)
- 6.3
- d (mm)
- 4.5
- L (mm)
- 22.5
- s (mm) - strip length
- 8
- Insulation material
- PC
- Tab Size
- 6,3x0,8
- Insulation colour
- Blue (insulated terminals)
- Material
- Brass/Cu, Cu/Sn
- Easy-entry
- Yes
- Tab
- 6,3x0,8
- Neck type
- Reinforcement sleeve
- AWG/MCM Cu
- 16 - 14 AWG
- mm² Cu
- 1,5-2,5
- Model
- Plug (male)
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Colour insulation
- Blue
- AWG-range, Min
- 16
- AWG-range, Max
- 14
- Nominal cross section, Min (mm²)
- 1.5
- Nominal cross section, Max (mm²)
- 2.5
- Material insulation
- PC
- Pieces per pack
- 100
- Net weight (kg)
- 0.001
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Plug dimensions
- Flat 6.3x0.8 mm
- AWG-range
- 14–16
- Nominal cross section
- 1.5–2.5 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004887
- SAP 1000021138
- Code 8170800
Product Documentation
Document preview: ISOL.FLATSTIFT 1,5-2,5MM2 (A2507H) — Specification sheet
