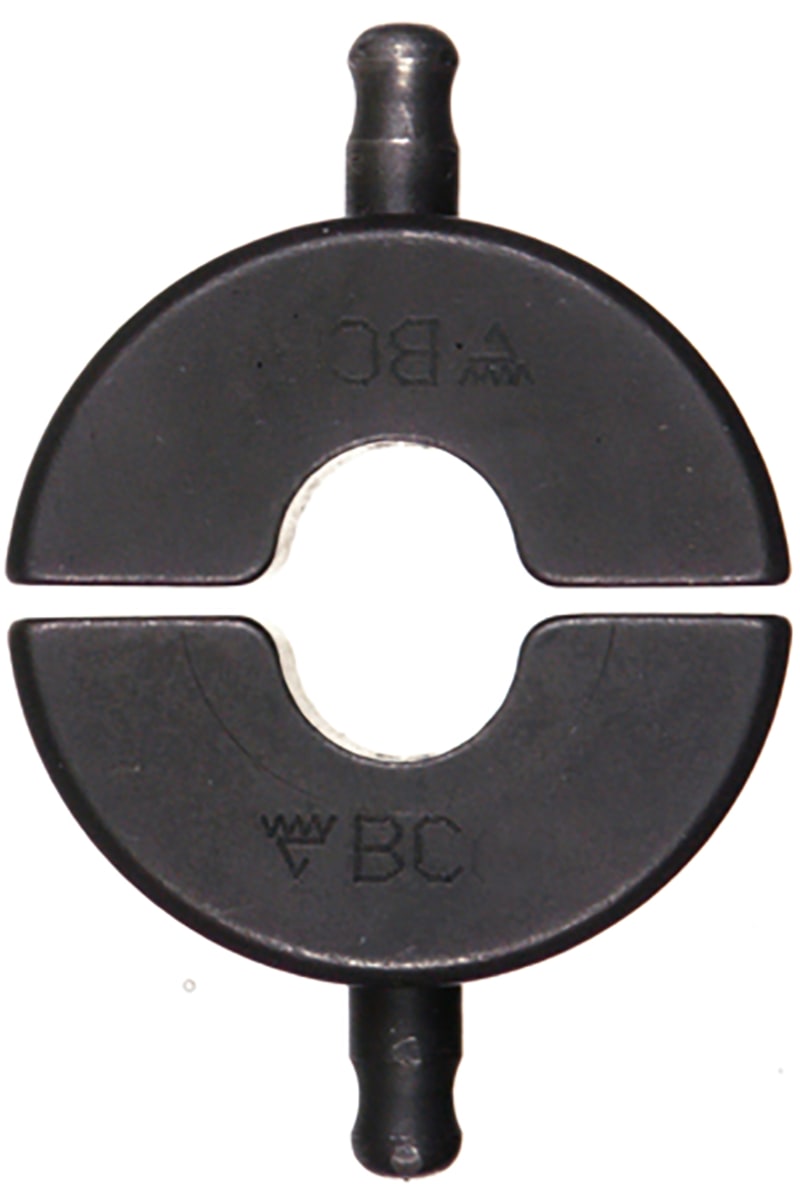

Elpress C-sleeve crimping die, copper (B25C21)
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress c-sleeve crimping die, copper. Part of the Elpress hydraulic crimping system for oval crimping of copper C-type branch connectors. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- B25C21
- EAN / GTIN
- 7393487035997
- Sales unit
- pcs
- Article number
- 5312-252100
- Type designation
- B25C21
- R, radius (mm)
- 20
- L (mm)
- 16
- h1 (mm)
- 26.5
- Crimp geometries
- Oval
- Number of crimps
- 2
- mm² Cu
- Total: 450-540
- mm² C-sleeve Cu Range, Min
- 450-540
- mm² C-sleeve Cu Range, Max
- 450-540
- Through conductor, Min (mm²)
- 150-300
- Through conductor, Max (mm²)
- 150-300
- Branching, Min (mm²)
- 150-300
- Branching, Max (mm²)
- 150-300
- Application
- Pipe cable lug and connectors
- Compression shape
- Oval pressing
- Cross section, Min (mm²)
- 150
- Cross section, Max (mm²)
- 300
- AWG-range, Min
- 500
- AWG-range, Max
- 600
- Pieces per pack
- 1
- Net weight (kg)
- 0.864
- Height Pack (mm)
- 70
- Depth Pack (mm)
- 90
- Width Pack (mm)
- 90
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487035997
- SAP 1000059386
- Code 8912025
