Elpress
KRFS150-12 (7301-291900)
Part number7301-291900EAN / GTIN7393487062108HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

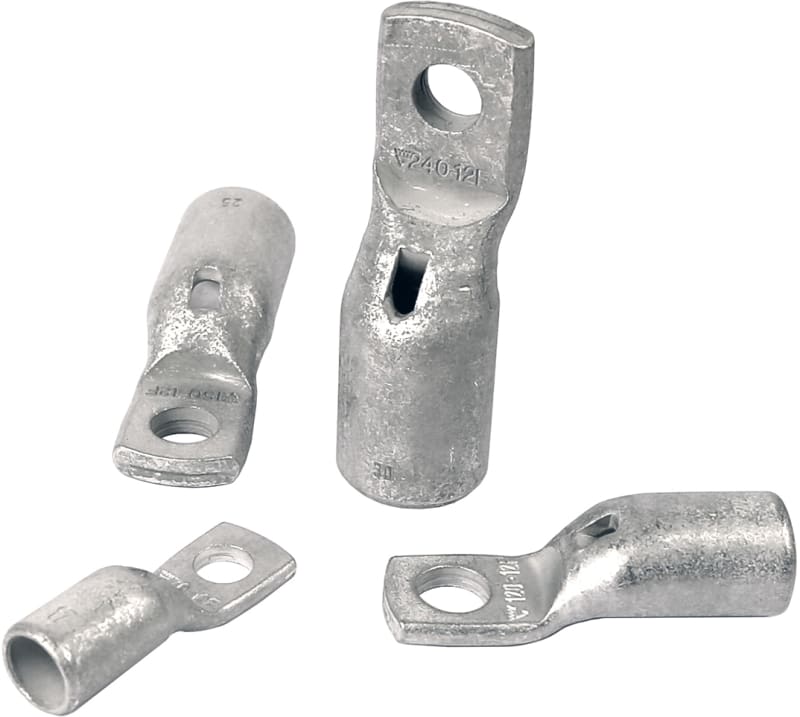

Elpress 7301-291900 Cu tubular cable lug.
Technical Specifications
- Manufacturer part number (MPN)
- 7301-291900
- EAN / GTIN
- 7393487062108
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Article number
- 7301-291900
- Type designation
- KRFS150-12
- W (mm)
- 25
- N (mm)
- 12
- N1 (mm)
- 15
- P (mm)
- 27
- f (mm)
- 1
- d (mm)
- 19
- L (mm)
- 76
- t (mm) - palm thickness
- 6.3
- s (mm) - strip length
- 32
- Screw
- M12
- Inspection hole
- Yes
- AWG/MCM Cu
- 300 MCM
- mm² Cu
- 150
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Material
- Copper
- Bolt dimension metric (M)
- 12
- With sight-hole
- Yes
- Slender flange model
- Yes
- AWG size
- 300 kcmil
- Pieces per pack
- 25
- Net weight (kg)
- 0.115
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
- Insulated
- No
- Nominal cross section
- 150 mm²
- Bolt dimension (metric)
- 12
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487062108
- SAP 1200123690
- Code 81977320
Product Documentation
Document preview: KRFS150-12 (7301-291900) — Specification sheet
