Elpress AKP240 Aluminium-Copper Bimetallic Pin Socket — 240 mm² Al Conductor, 19.8 mm Cu Pin
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AKP240 — aluminium-copper (AlCu) bimetallic pin socket that terminates a 240 mm² aluminium conductor and presents a 19.8 mm solid copper pin for connection to copper-terminal apparatus such as screw or clamp terminals, isolators and circuit-breakers. The aluminium compression barrel is friction-welded to the copper pin from solid material, joining the dissimilar metals directly without a bimetal washer, and an internal oil-stop barrier separates the conductor from the pin. Two compression crimps are made on the aluminium barrel with the matching die; overall length 113.5 mm, strip length 61 mm. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors and is tested to IEC 61238-1. RoHS 2011/65/EU, REACH; CE, UKCA marked.
Technical Specifications
- Type
- Aluminium-copper (AlCu) bimetallic pin socket
- Function
- Terminates an aluminium conductor and presents a solid copper pin for connection to copper-terminal apparatus
- Conductor cross-section (aluminium)
- 240 mm²
- Copper pin diameter
- 19.8 mm
- Overall length
- 113.5 mm
- Strip length
- 61 mm
- Material
- Friction-welded solid aluminium barrel and solid copper pin (bimetallic)
- Barrier
- Internal oil-stop centre stop
- Crimp
- Two compression crimps on the aluminium barrel
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Compression connector standard
- IEC 61238-1
- Compliance
- RoHS 2011/65/EU, REACH; CE, UKCA marked
- Manufacturer part number (MPN)
- AKP240
- EAN / GTIN
- 7393487010321
- Sales unit
- pcs
- Package quantity
- 12 pcs
- HS code
- 8536.90
- Article number
- 7337-401100
- Type designation
- AKP240

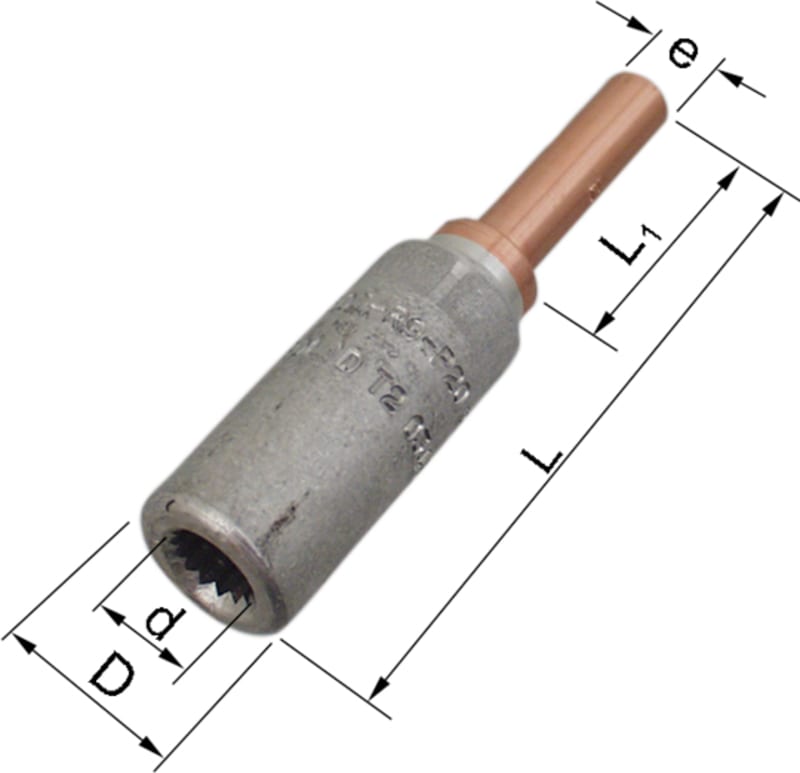

- e (mm)
- 14
- d (mm)
- 19.8
- L (mm)
- 113.5
- s (mm) - strip length
- 61
- AWG/MCM Stranded Al
- 450 MCM
- mm² Stranded Al
- 240
- Oil stop/centre bar
- Yes
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 240
- Pieces per pack
- 12
- Net weight (kg)
- 0.165
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487010321
- SAP 1000416740
- Code 81121220
