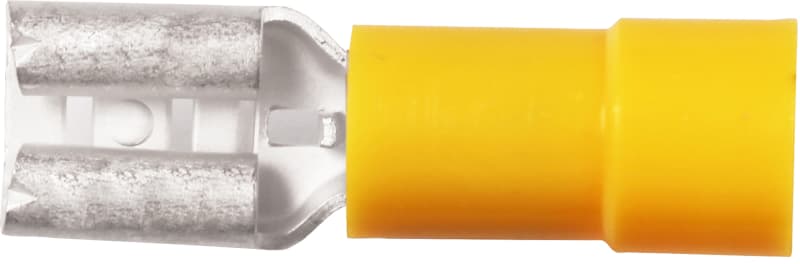

Elpress Spadecoupling rullet model, yellow (PVC), 6,0mm², width 11mm, length 31mm,9,5X1,2
Part numberA4609FLSEAN / GTIN7393487004986HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A4609FLS Spademuffe rullet model, yellow (PVC), 6,0mm², width 11mm, length 31mm,9,5x1,2.
Technical Specifications
- Manufacturer part number (MPN)
- A4609FLS
- EAN / GTIN
- 7393487004986
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7462-502000
- Type designation
- A4609FLS
- W (mm)
- 10.9
- d (mm)
- 6.6
- L (mm)
- 30.1
- s (mm) - strip length
- 9
- Insulation material
- PA
- Tab Size
- 9,5x1,2
- Insulation colour
- Yellow (insulated terminals)
- Material
- Brass, Cu/Sn
- Easy-entry
- Yes
- Neck type
- Reinforcement sleeve
- AWG/MCM Cu
- 12 - 10 AWG
- mm² Cu
- 4-6
- Model
- Sleeve
- Halogen free
- Yes
- Insulation
- Partially isolated
- Colour insulation
- Yellow
- AWG-range, Min
- 12
- AWG-range, Max
- 10
- Nominal cross section, Min (mm²)
- 4
- Nominal cross section, Max (mm²)
- 6
- Material insulation
- PA (Polyamide)
- Pieces per pack
- 100
- Net weight (kg)
- 0.002
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 46
- Surface protection
- Tinned
- Plug dimensions
- Flat 9.5x1.2 mm
- AWG-range
- 10–12
- Nominal cross section
- 4–6 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004986
- SAP 1000002122
- Code 815908
Product Documentation
Document preview: Elpress Spadecoupling rullet model, yellow (PVC), 6,0mm², width 11mm, length 31mm,9,5X1,2 — Specification sheet
