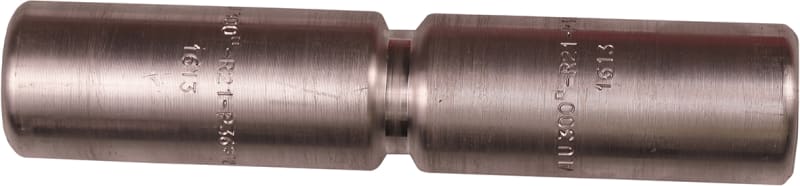

Elpress AS300 Aluminium Compression Through Connector 300 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AS300 — aluminium compression through connector (splice) with internal partition for jointing 300 mm² aluminium conductors end to end. Made from solid aluminium (Al 99.7%); the central partition acts as a cable stop for even conductor insertion from both ends. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) aluminium conductors; tested to IEC 61238-1 within the Elpress crimp system.
Technical Specifications
- Type
- Aluminium compression through connector with partition
- Conductor cross-section
- 300 mm²
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) aluminium
- Material
- Solid aluminium (Al 99.7%)
- Feature
- Internal partition (central cable stop)
- Crimp
- Two compression crimps per side (observe Elpress crimp sequence)
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AS300
- EAN / GTIN
- 7393487009134
- Sales unit
- pcs
- Package quantity
- 3 pcs
- HS code
- 8536.90
- Article number
- 7313-401200
- Type designation
- AS300
- d (mm)
- 22
- L (mm)
- 177
- s (mm) - strip length
- 83
- AWG/MCM Stranded Al
- 550 MCM
- mm² Stranded Al
- 300
- Oil stop/centre bar
- Yes
- Voltage level
- Other
- Cross section shape
- Round/sector-shaped
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 300
- Pieces per pack
- 3
- Net weight (kg)
- 0.305
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487009134
- SAP 1000059008
- Code 8872561
Product Documentation
More from Elpress
Elpress
Elpress KRF95-10-45GR Copper 45° Angled Tube Cable Lug 95 mm² M10
Elpress
Elpress ISOL A4607H
Elpress
Elpress Spadecoupling fully insulated, blue (PA), 2,5mm², width 7,1mm, length 19,5mm, 4,8X0,8
A2505FLSF8
Elpress
A1565R-CP (7278-260903)
Elpress
Elpress Crimping punch, Al 630–1000 mm² W60D
5335-201700
Elpress
Elpress KR6-4 Copper Tube Cable Lug 6 mm² M4
Elpress
KRFS300A-16 (7301-293100)
Elpress
Elpress A2510R Ring Terminal, 1.5-2.5 mm²
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AS300?
- AS300 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is AS300.
- What is the HS code for AS300?
- The customs tariff (HS) code for AS300 is 8536.90.
- Who manufactures AS300?
- AS300 is a Elpress product in the Electrical Components range.
- Is a datasheet available for AS300?
- Yes — the AS300 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AS300?
- The minimum order quantity is 1.
- Is AS300 available?
- Yes — AS300 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
