Elpress

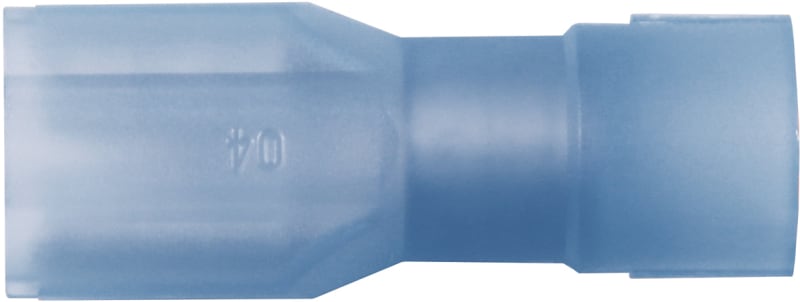

Elpress Spadecoupling fully insulated, blue (PA), 2,5mm², width 7,1mm, length 19,5mm, 4,8X0,8
Part numberA2505FLSF8EAN / GTIN7393487005129HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress A2505FLSF8 Spademuffe fully insulated, blue (PA), 2,5mm², width 7,1mm, length 19,5mm, 4,8x0,8.
Technical Specifications
- Manufacturer part number (MPN)
- A2505FLSF8
- EAN / GTIN
- 7393487005129
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 2.5 mm²
- Article number
- 7465-501100
- Type designation
- A2505FLSF8
- W (mm)
- 7.2
- d (mm)
- 4.5
- L (mm)
- 19.5
- s (mm) - strip length
- 8
- Insulation material
- PA
- Tab Size
- 4,8x0,8
- Insulation colour
- Blue (insulated terminals)
- Material
- Brass, Cu/Sn
- Easy-entry
- Yes
- Neck type
- Reinforcement sleeve
- AWG/MCM Cu
- 16 - 14 AWG
- mm² Cu
- 1,5-2,5
- Model
- Sleeve
- Halogen free
- Yes
- Insulation
- Fully isolated
- Colour insulation
- Blue
- AWG-range, Min
- 16
- AWG-range, Max
- 14
- Nominal cross section, Min (mm²)
- 1.5
- Nominal cross section, Max (mm²)
- 2.5
- Material insulation
- PA (Polyamide)
- Pieces per pack
- 100
- Net weight (kg)
- 0.0008
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 46
- Surface protection
- Tinned
- Plug dimensions
- Flat 4.8x0.8 mm
- AWG-range
- 14–16
- Nominal cross section
- 1.5–2.5 mm²
- With cam clamp
- No
- With tap spreader
- No
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487005129
- SAP 1000049493
- Code 8812650
Product Documentation
Document preview: Elpress Spadecoupling fully insulated, blue (PA), 2,5mm², width 7,1mm, length 19,5mm, 4,8X0,8 — Specification sheet
