Product Description

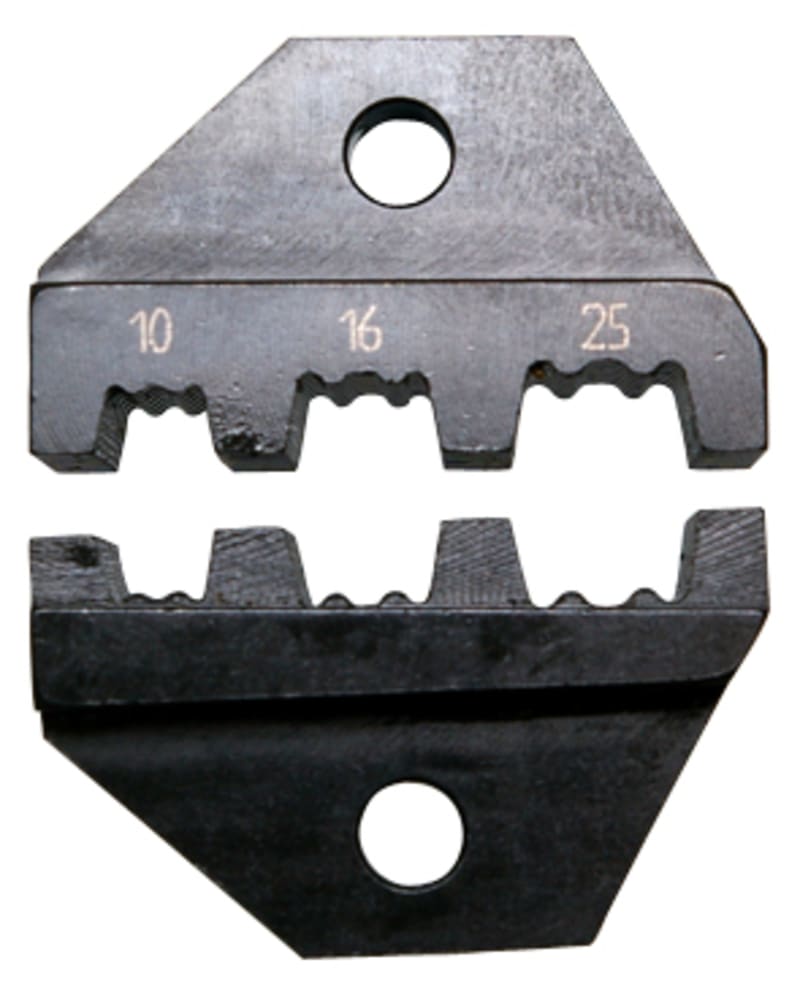

Elpress wire-end ferrule crimping die for wire-end ferrules. Part of the Elpress hydraulic crimping system for crimping of insulated and uninsulated wire-end ferrules. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 5112-509400
- EAN / GTIN
- 7393487028050
- Sales unit
- pcs
- Article number
- 5112-509400
- Type designation
- EB1025
- Crimp geometries
- Trapezoid
- Application (connector type)
- End sleeves
- AWG/MCM Cu
- 6 - 4 AWG
- mm² Cu
- 10-25
- Application
- Cable end sleeves
- Compression shape
- Trapezoid compression
- Cross section, Min (mm²)
- 10
- Cross section, Max (mm²)
- 25
- AWG-range, Min
- 8
- AWG-range, Max
- 4
- Pieces per pack
- 1
- Net weight (kg)
- 0.05
- Height Pack (mm)
- 17
- Depth Pack (mm)
- 50
- Width Pack (mm)
- 34
- Cross section
- 10–25 mm²
- AWG-range
- 7–3
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487028050
- SAP 1000056504
- Code 8540867
Product Documentation
Document preview: Elpress Wire-end ferrule crimping die for wire-end ferrules EB1025 (5112-509400) — Specification sheet
