Elpress

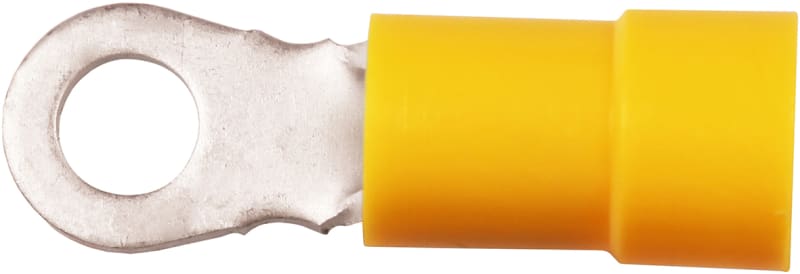

Elpress A4653R
Part numberA4653REAN / GTIN7393487004429HS code8536.90
Electrical Components
Cable Lugs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress A4653R is listed under Electrical Components / Cable Lugs. Sales unit: pcs; Package quantity: 100 pcs; Type designation: A4653R; W (mm): 9.5; d (mm): 6.6; L (mm): 26.7.
Technical Specifications
- Manufacturer part number (MPN)
- A4653R
- EAN / GTIN
- 7393487004429
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7280-262200
- Type designation
- A4653R
- W (mm)
- 9.5
- d (mm)
- 6.6
- L (mm)
- 26.7
- t (mm) - palm thickness
- 1
- s (mm) - strip length
- 9
- Insulation material
- PC
- Insulation colour
- Yellow (insulated terminals)
- Material
- Cu, Cu/Sn
- Easy-entry
- Yes
- Screw
- M5
- Neck type
- Brazed
- AWG/MCM Cu
- 12 - 10 AWG
- mm² Cu
- 4-6
- L1 (mm)
- 20.5
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Flange shape
- Ring shape
- Colour insulation
- Yellow
- Bolt dimension metric (M)
- 5
- AWG-range, Min
- 12
- AWG-range, Max
- 10
- Nominal cross section, Min (mm²)
- 4
- Nominal cross section, Max (mm²)
- 6
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Net weight (kg)
- 0.0017
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 46
- Pieces per pack
- 100
- Total length
- 25 mm
- For pull protected connections
- No
- Reel/roll packaging
- No
- Bolt dimension (metric)
- 5
- AWG-range
- 10–12
- Nominal cross section
- 4–6 mm²
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- According to DIN
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004429
- SAP 1000060418
- Code 8913903
Product Documentation
Document preview: Elpress A4653R — Specification sheet
