Elpress KRT95-12 Copper Tube Cable Lug 95 mm² M12
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KRT95-12 — compression (crimp) tube cable lug for terminating 95 mm² copper conductor onto an M12 stud. Barrel dimensioned for stranded (IEC 60228 Class 2) copper conductors, with a cable inspection hole for correct conductor insertion. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn). Crimped with matching Elpress dies to produce a gas-tight, low-resistance connection tested to IEC 61238-1. Carries DNV type approval and UL listing (File E205350) within the tested Elpress crimp system. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) tube cable lug
- Conductor cross-section
- 95 mm²
- Stud / bolt hole
- M12
- Conductor class
- Stranded (IEC 60228 Cl.2)
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Crimp system
- System Elpress, tested to IEC 61238-1
- Approvals
- DNV type approval, UL File E205350
- Manufacturer part number (MPN)
- KRT95-12
- EAN / GTIN
- 7393487007642
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
- Article number
- 7301-277900
- Type designation
- KRT95-12

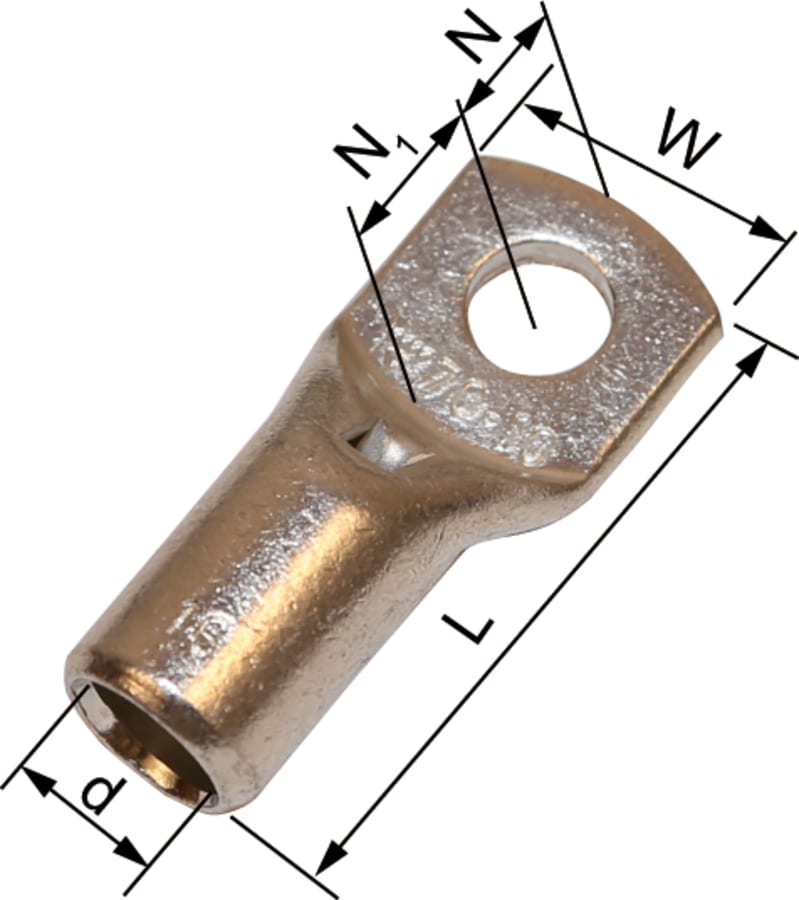

- W (mm)
- 26
- N (mm)
- 12
- N1 (mm)
- 14
- P (mm)
- 26
- d (mm)
- 13.5
- L (mm)
- 63
- t (mm) - palm thickness
- 4.4
- s (mm) - strip length
- 26
- Screw
- M12
- Inspection hole
- Yes
- AWG/MCM Cu
- 3/0 AWG
- mm² Cu
- 95
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Class 2 = stranded
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 12
- With sight-hole
- Yes
- AWG size
- 000
- Pieces per pack
- 50
- Net weight (kg)
- 0.055
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7393487007642
- SAP 1000416704
- Code 823965
Product Documentation
More from Elpress
Elpress
Elpress KRT95-10 Copper Tube Cable Lug 95 mm² M10
Elpress
Elpress AS300 Aluminium Compression Through Connector 300 mm²
Elpress
Elpress KRF95-10-45GR Copper 45° Angled Tube Cable Lug 95 mm² M10
Elpress
Elpress ISOL A4607H
Elpress
Elpress Spadecoupling fully insulated, blue (PA), 2,5mm², width 7,1mm, length 19,5mm, 4,8X0,8
A2505FLSF8
Elpress
A1565R-CP (7278-260903)
Elpress
Elpress Crimping punch, Al 630–1000 mm² W60D
5335-201700
Elpress
Elpress KR6-4 Copper Tube Cable Lug 6 mm² M4
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy KRT95-12?
- KRT95-12 can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is KRT95-12.
- What is the HS code for KRT95-12?
- The customs tariff (HS) code for KRT95-12 is 8544.42.
- Who manufactures KRT95-12?
- KRT95-12 is a Elpress product in the Electrical Components range.
- Is a datasheet available for KRT95-12?
- Yes — the KRT95-12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for KRT95-12?
- The minimum order quantity is 1.
- Is KRT95-12 available?
- Yes — KRT95-12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
