Elpress KRT50-10 Copper Tube Cable Lug 50 mm² M10
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KRT50-10 — compression (crimp) tube cable lug for terminating 50 mm² copper conductor onto an M10 stud. Barrel dimensioned for stranded (IEC 60228 Class 2) copper conductors, with a cable inspection hole for correct conductor insertion. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn). Crimped with matching Elpress dies to produce a gas-tight, low-resistance connection tested to IEC 61238-1. Carries DNV type approval and UL listing (File E205350) within the tested Elpress crimp system. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) tube cable lug
- Conductor cross-section
- 50 mm²
- Stud / bolt hole
- M10
- Conductor class
- Stranded (IEC 60228 Cl.2)
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Crimp system
- System Elpress, tested to IEC 61238-1
- Approvals
- DNV type approval, UL File E205350
- Manufacturer part number (MPN)
- KRT50-10
- EAN / GTIN
- 7393487007567
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
- Article number
- 7301-277100

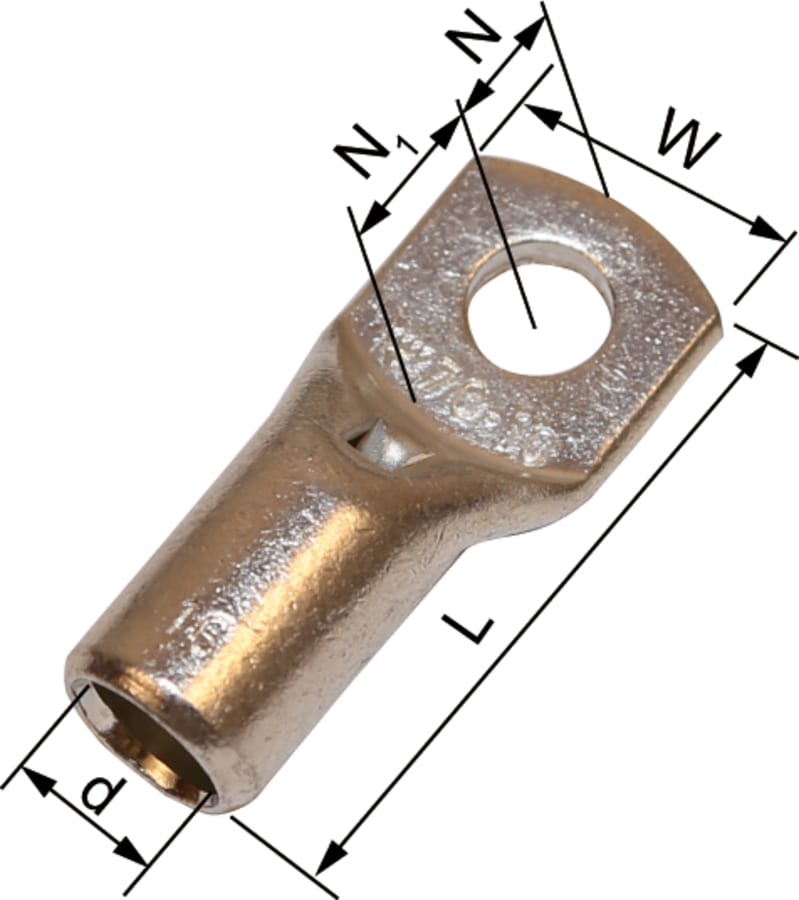

- Type designation
- KRT50-10
- W (mm)
- 20
- N (mm)
- 11
- N1 (mm)
- 11
- P (mm)
- 22
- d (mm)
- 10
- L (mm)
- 53
- t (mm) - palm thickness
- 3.9
- s (mm) - strip length
- 22
- Screw
- M10
- Inspection hole
- Yes
- AWG/MCM Cu
- 1/0 AWG
- mm² Cu
- 50
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Class 2 = stranded
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 10
- With sight-hole
- Yes
- AWG size
- 0
- Pieces per pack
- 50
- Net weight (kg)
- 0.031
- Height Pack (mm)
- 87
- Depth Pack (mm)
- 141
- Width Pack (mm)
- 86
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7393487007567
- SAP 1000416697
- Code 823958
Product Documentation
