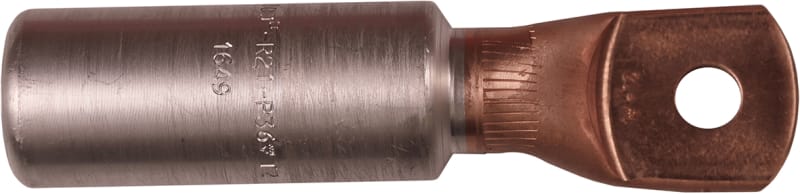

Elpress AKK300-16 Aluminium-Copper Bimetallic Compression Cable Lug 300 mm² M16
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress AKK300-16 — bimetallic (AlCu) compression cable lug for terminating a 300 mm² aluminium conductor onto an M16 copper stud connection. The aluminium barrel is friction-welded to a copper palm from solid material, so an aluminium conductor can be connected directly to a copper busbar or apparatus without a separate bimetal washer. Accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors; two compression crimps are made on the aluminium barrel. Tested to IEC 61238-1 within the Elpress crimp system.
Technical Specifications
- Type
- AlCu bimetallic compression cable lug
- Conductor cross-section
- 300 mm² (aluminium)
- Stud / bolt hole
- M16
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Friction-welded solid aluminium barrel + electrolytic copper palm
- Connection
- Aluminium conductor to copper busbar / apparatus
- Crimp
- Two compression crimps on the aluminium barrel
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- AKK300-16
- EAN / GTIN
- 7393487009561
- Sales unit
- pcs
- Package quantity
- 6 pcs
- HS code
- 8536.90
- Article number
- 7331-404300
- Type designation
- AKK300-16
- W (mm)
- 37
- N (mm)
- 18.5
- N1 (mm)
- 18.5
- P (mm)
- 37
- d (mm)
- 22
- L (mm)
- 154
- t (mm) - palm thickness
- 6.5
- s (mm) - strip length
- 82
- Screw
- M16
- AWG/MCM Stranded Al
- 550 MCM
- mm² Stranded Al
- 300
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 16
- Cross section shape
- Round
- Nominal cross section aluminium, RM/SM, Max (mm²)
- 300
- Pieces per pack
- 6
- Net weight (kg)
- 0.294
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487009561
- SAP 1000028462
- Code 8222634
Product Documentation
