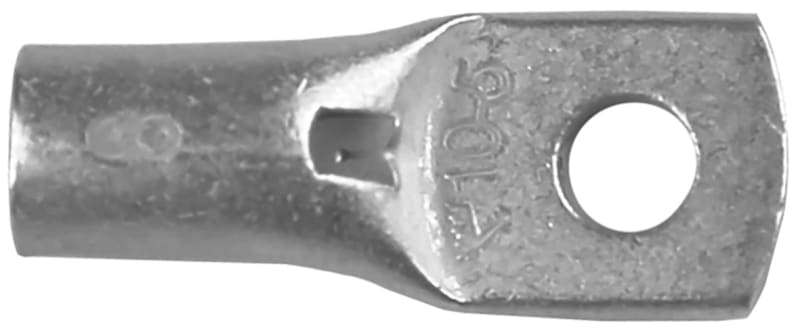

Elpress KR10-5 Copper Tube Cable Lug 10 mm² M5
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress KR10-5 — compression (crimp) tube cable lug for terminating 10 mm² copper conductor onto an M5 stud. Barrel dimensioned for stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors, with a cable inspection hole for correct conductor insertion. Formed from 99.95% electrolytic copper, tin-plated (Cu/Sn). Crimped with matching Elpress dies to produce a gas-tight, low-resistance connection tested to IEC 61238-1. Crimped connection tested to IEC 61238-1 (System Elpress). Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) tube cable lug
- Conductor cross-section
- 10 mm²
- Stud / bolt hole
- M5
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5)
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Crimp system
- System Elpress, tested to IEC 61238-1
- Manufacturer part number (MPN)
- KR10-5
- EAN / GTIN
- 7393487005884
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
- Article number
- 7301-011700
- Type designation
- KR10-5
- W (mm)
- 11.5
- N (mm)
- 6
- N1 (mm)
- 7.5
- P (mm)
- 13.5
- d (mm)
- 5
- L (mm)
- 29
- t (mm) - palm thickness
- 2.9
- s (mm) - strip length
- 11
- Screw
- M5
- Inspection hole
- Yes
- AWG/MCM Cu
- 8 AWG
- mm² Cu
- 10
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Bolt dimension metric (M)
- 5
- With sight-hole
- Yes
- AWG size
- 8
- Pieces per pack
- 100
- Net weight (kg)
- 0.007
- Height Pack (mm)
- 70
- Depth Pack (mm)
- 90
- Width Pack (mm)
- 90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487005884
- SAP 1000048220
- Code 8531012
