Elpress Compression cable lug, KRF-series, 300 mm², M20 stud
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress compression (crimp) cable lug, KRF series, 300 mm² conductor cross-section, M20 bolt hole. Crimped tube-type ring terminal for copper/aluminium conductors; installed with a matched Elpress die and crimp force.
Technical Specifications
- Manufacturer part number (MPN)
- 7301-146500
- EAN / GTIN
- 7393487006287
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Conductor cross-section
- 300 mm²
- Thread size
- M20
- Article number
- 7301-146500
- Type designation
- KRF300A-20

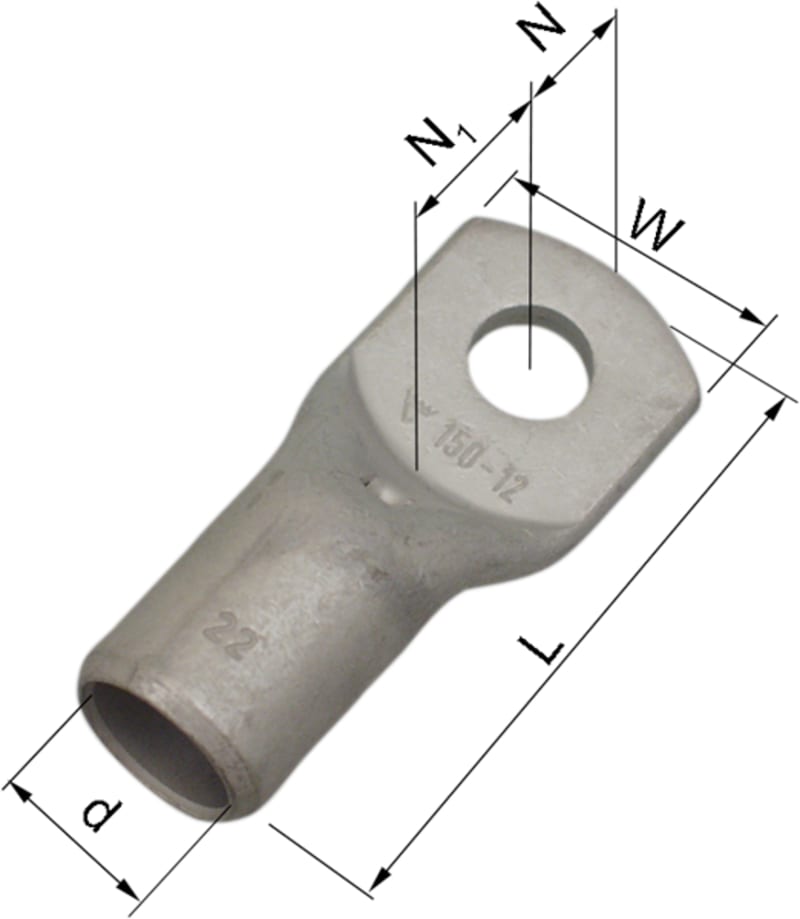

- W (mm)
- 46
- N (mm)
- 23
- N1 (mm)
- 25
- P (mm)
- 48
- f (mm)
- 1.75
- d (mm)
- 24.5
- L (mm)
- 107
- t (mm) - palm thickness
- 6.8
- s (mm) - strip length
- 40
- Screw
- M20
- Inspection hole
- Yes
- AWG/MCM Cu
- 550 MCM
- mm² Cu
- 300
- Surface protection
- Tin plated
- Connecting angle
- 180° (horizontal)
- Flange shape
- Ring shape
- Conductor category
- Several
- Number of mounting holes
- 1
- Material
- Copper
- Bolt dimension metric (M)
- 20
- With sight-hole
- Yes
- AWG size
- Other
- Pieces per pack
- 10
- Net weight (kg)
- 0.293
- Height Pack (mm)
- 145
- Depth Pack (mm)
- 180
- Width Pack (mm)
- 87
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7393487006287
- SAP 1000076708
- Code 8809943
Product Documentation
