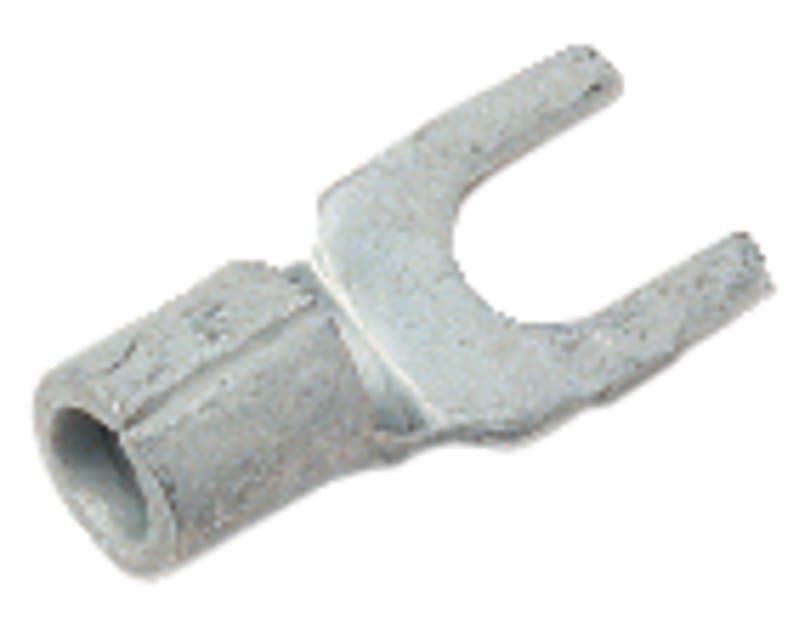

Elpress B2532G Uninsulated Flanged Fork (Spade) Terminal 1.5–2.5 mm² M3

Elpress B2532G — uninsulated flanged fork (spade) terminal for a 1.5–2.5 mm² copper conductor, for an M3 screw stud (fork slot Ø 3.2 mm). Bare tinned 99.95% copper with a brazed neck. The open fork slot fits over a screw stud without removing the nut; crimped to stranded or fine-stranded copper conductors (IEC 60228) with matching Elpress/Abiko dies for terminal-block, contactor and distribution-equipment terminations.

Type

Uninsulated flanged fork (spade) terminal

Conductor cross-section

1.5–2.5 mm²

Stud size

M3 (fork slot Ø 3.2 mm)

Terminal form

Fork (spade), open slot

Insulation

None (bare)

Material

Copper 99.95%, tin-plated, brazed neck

Conductor

Stranded / fine-stranded copper (IEC 60228)

Series

B (uninsulated)

Manufacturer part number (MPN)

B2532G

EAN / GTIN

7393487003989

Sales unit

pcs

HS code

8536.90

Article number

7259-271000

Type designation

B2532G

W (mm)

5.7

d (mm)

2.3

L (mm)

22

t (mm) - palm thickness

0.75

s (mm) - strip length

8

Screw

M3

Neck type

Brazed

AWG/MCM Cu

16 - 14 AWG

mm² Cu

1,5-2,5

Halogen free

Yes

Surface protection

Tin plated

Flange shape

Fork shape

Bolt dimension metric (M)

3

AWG-range, Min

16

AWG-range, Max

14

Nominal cross section, Min (mm²)

1.5

Nominal cross section, Max (mm²)

2.5

Suitable for fine strand conductors

Yes

Suitable for solid conductors

Yes

Suitable for stranded conductors

Yes

Suitable for round conductors

Yes

Sleeve form

Short

Pieces per pack

100

Net weight (kg)

0.0006

Height Pack (mm)

100

Depth Pack (mm)

60

Width Pack (mm)

22

HS Code

8536.90

• EAN 7393487003989
• SAP 1000416534
• Code 8966791
