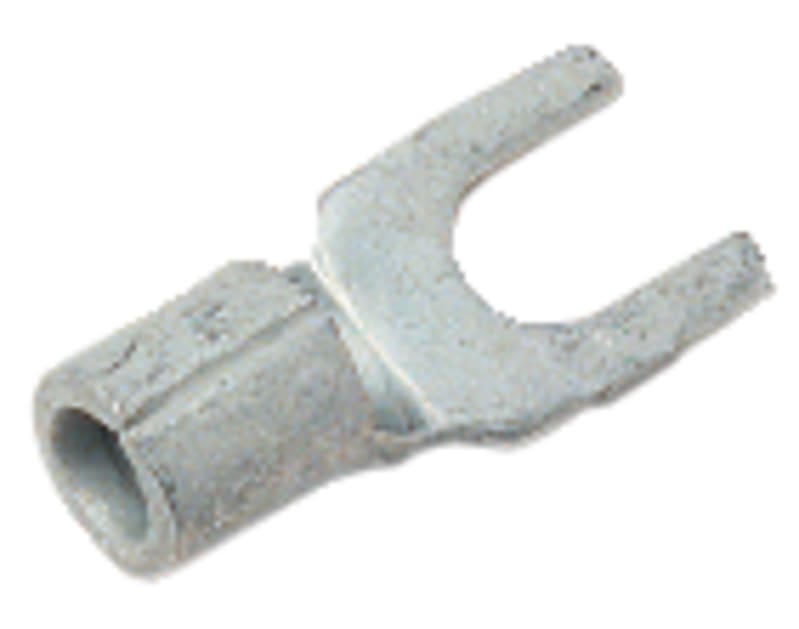

Elpress B2553G Uninsulated Flanged Fork (Spade) Terminal 1.5–2.5 mm² M5
Pricing
Request a quote
We reply within 24 hours
Product Description
Elpress B2553G — uninsulated flanged fork (spade) terminal for a 1.5–2.5 mm² copper conductor, for an M5 screw stud (fork slot Ø 5.3 mm). Bare tinned 99.95% copper with a brazed neck. The open fork slot fits over a screw stud without removing the nut; crimped to stranded or fine-stranded copper conductors (IEC 60228) with matching Elpress/Abiko dies for terminal-block, contactor and distribution-equipment terminations.
Technical Specifications
- Type
- Uninsulated flanged fork (spade) terminal
- Conductor cross-section
- 1.5–2.5 mm²
- Stud size
- M5 (fork slot Ø 5.3 mm)
- Terminal form
- Fork (spade), open slot
- Insulation
- None (bare)
- Material
- Copper 99.95%, tin-plated, brazed neck
- Conductor
- Stranded / fine-stranded copper (IEC 60228)
- Series
- B (uninsulated)
- Manufacturer part number (MPN)
- B2553G
- EAN / GTIN
- 7393487003996
- Sales unit
- pcs
- HS code
- 8536.90
- Article number
- 7259-271300
- Type designation
- B2553G
- W (mm)
- 8
- d (mm)
- 2.3
- L (mm)
- 16
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 8
- Screw
- M5
- Neck type
- Brazed
- AWG/MCM Cu
- 16 - 14 AWG
- mm² Cu
- 1,5-2,5
- Halogen free
- Yes
- Surface protection
- Tin plated
- Flange shape
- Fork shape
- Bolt dimension metric (M)
- 5
- AWG-range, Min
- 16
- AWG-range, Max
- 14
- Nominal cross section, Min (mm²)
- 1.5
- Nominal cross section, Max (mm²)
- 2.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Pieces per pack
- 100
- Net weight (kg)
- 0.0006
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487003996
- SAP 1000416536
- Code 823675
Product Documentation
More from Elpress
Elpress
ODIN KNIFE-cassette (embla SP 16-Cassette)
EMBLA SP 16-CASSETTE
Elpress
QSF-U (EMBLA16)
Elpress
Elpress B2532G Uninsulated Flanged Fork (Spade) Terminal 1.5–2.5 mm² M3
Elpress
KRT300-12 (HKS50)
Elpress
Elpress B2519SR Pin Terminal, 1.5-2.5 mm²
Elpress
QSF-S (KL55)
Elpress
Elpress Hydraulic crimp head, C-type, 13-Ton
2070571
Elpress
Elpress Crimping die, aluminium (2070611)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy B2553G?
- B2553G can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is B2553G.
- What is the HS code for B2553G?
- The customs tariff (HS) code for B2553G is 8536.90.
- Who manufactures B2553G?
- B2553G is a Elpress product in the Electrical Components range.
- Is a datasheet available for B2553G?
- Yes — the B2553G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for B2553G?
- The minimum order quantity is 1.
- Is B2553G available?
- Yes — B2553G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
