Elis Elektro

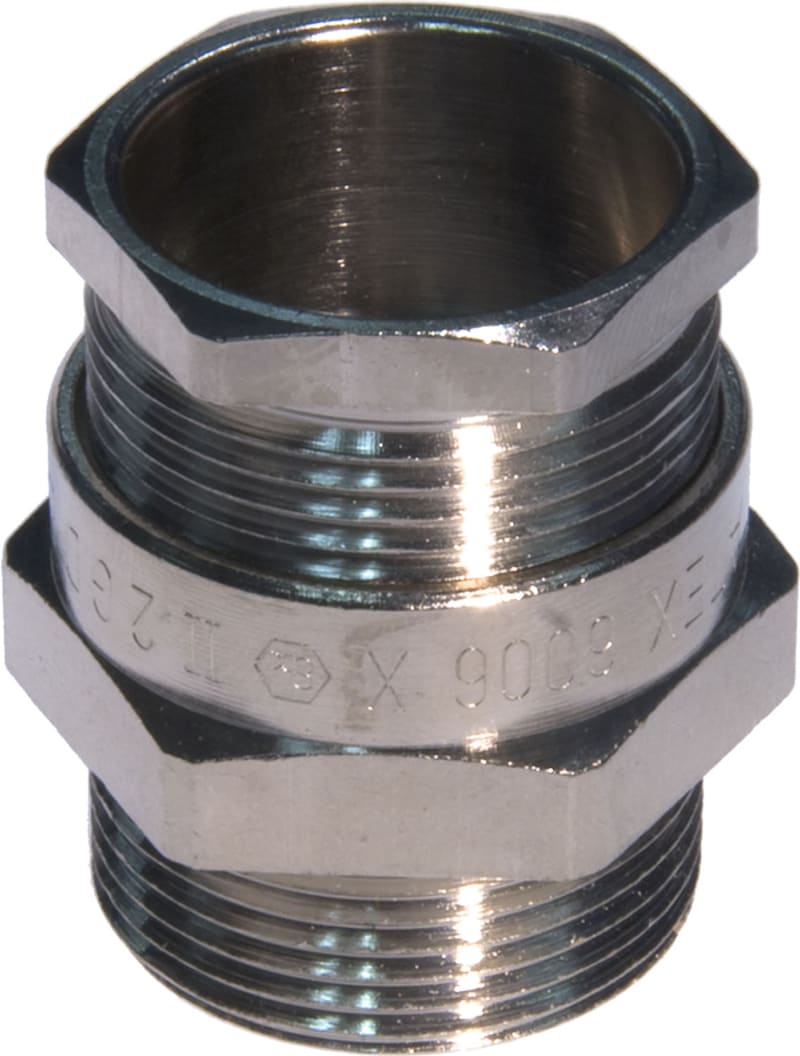

Nipple EX/EMC M20 10-12
Part numberØ=10-12mmEAN / GTIN7070613002701HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro Ø=10-12mm Nipple EX/EMC M20 10-12.
Technical Specifications
- Manufacturer part number (MPN)
- Ø=10-12mm
- EAN / GTIN
- 7070613002701
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Thread size
- M20
- Connection type to housing
- Screwing
- For wall thickness
- 0.1–8.5 mm
- Thread type
- Metric
- Nominal thread size metric/PG
- 20
- Pitch thread
- 1.5 mm
- Thread length
- 13 mm
- Wrench width
- 20 mm
- Hexagon angular dimension
- 24 mm
- Suitable for cable diameter
- 10–12 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP66
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Separable screw gland
- No
- Operating temperature
- -20–55 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 2
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Material sealing
- CR (neoprene)
- Country of origin
- France
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613002701
- SAP 1000039835
- Code 8745803
Product Documentation
Document preview: Nipple EX/EMC M20 10-12 (Ø=10-12mm) — Specification sheet
More from Elis Elektro
Elis Elektro
Eye bolt M6X80MM Els
MP-930E
Elis Elektro
H07 Z-K 1,5 mm² Violet Halogen-free 100M
1006551
Elis Elektro
Elis Elektro OPVC-JZ 10G1.5 mm2 Numbered Control Cable
1002123
Elis Elektro
Wall Trunking 170x65 mm, 3 m, Aluminium/White (TB1710-3)
Elis Elektro
Radius reduction 400mm Al
MP-788C
Elis Elektro

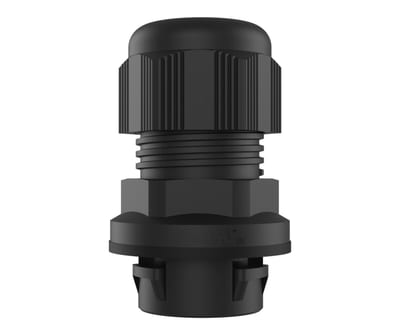

Elis Snap-in nipple M25 (8-17) Black
