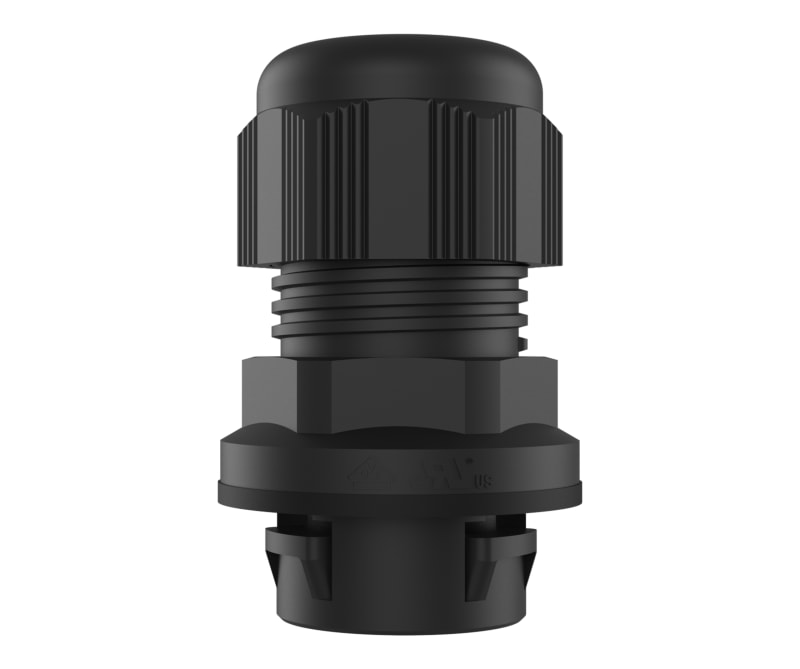

Elis Snap-in nipple M25 (8-17) Black
Part number1255035EAN / GTIN7070613074562HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255035 Elis Snap-in nipple M25 (8-17) Black.
Technical Specifications
- Manufacturer part number (MPN)
- 1255035
- Sales unit
- pcs
- Package quantity
- 25 pcs
- EL number
- 1255035
- EAN / GTIN
- 7070613074562
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 60 mm
- Product width
- 30 mm
- Product length / depth
- 30 mm
- Net weight
- 24 g
- Product volume
- 0.054 dm³
- Price units per base unit
- 1
- Suitable for cable diameter (mm)
- 8 to 17
- Nominal thread size metric/PG
- 20
- Wrench width (mm)
- 29
- Working temperature (°C)
- -20 to 100
- With strain relief
- Yes
- Bend radius protection/trumpet flare
- Yes
- Snapping in opening
- Yes
- Separable screw gland
- Yes
- Glass-fibre reinforced
- No
- Halogen free
- No
- Shock resistant
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Click in mounting
- For wall thickness
- 0.5–4 mm
- Thread type
- Metric
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Degree of protection (IP)
- IP68
- Type of sealing
- Cut-out ring
- Operating temperature
- -20–100 °C
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- Colour
- Black
Standards & Compliance
- HS Code
- 7412.20
Cross References
- 7070613074562
Product Documentation
Document preview: Elis Snap-in nipple M25 (8-17) Black (1255035) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro

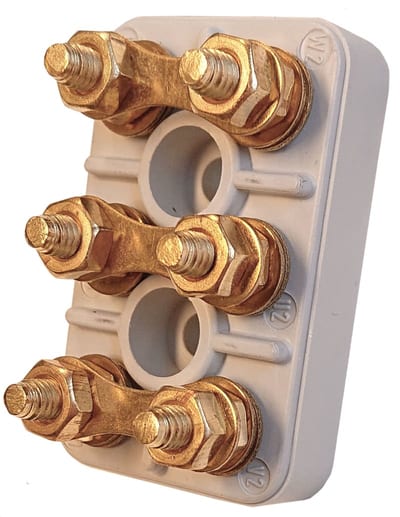

Terminal board KB 5S
G1082525
Elis Elektro

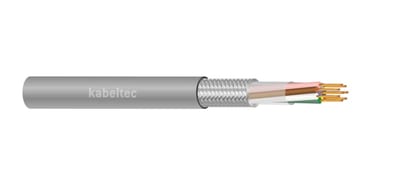

LIHCH 2X1,0 mm² Halogen-free
1003582
Elis Elektro

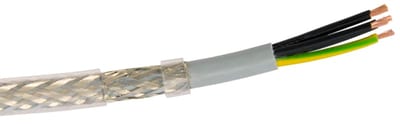

Elis Elektro 1002246 OePVC-JZ-CY 5G0.75 mm2 Copper-Screened Control Cable
Elis Elektro

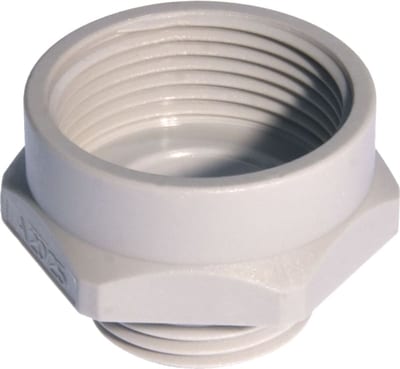

Extension M32/M40 Polyamide
12 548 07
Elis Elektro

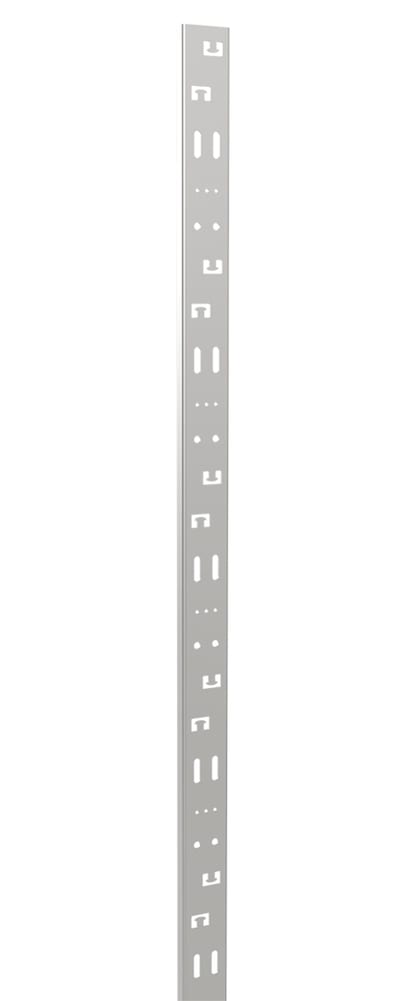

Mounting channel MP-MK 50mm L=2M MP-821S
Elis Elektro

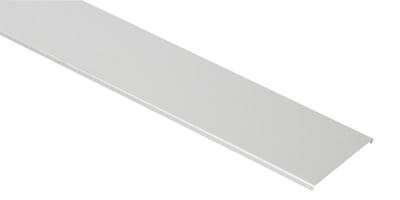

Cover 120mm Sendz L=3M
MP-421S
Elis Elektro

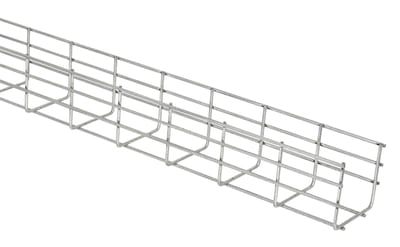

Wire Mesh Tray 120 H110 Z4 L=2,5M
MP-722HZ4
Elis Elektro

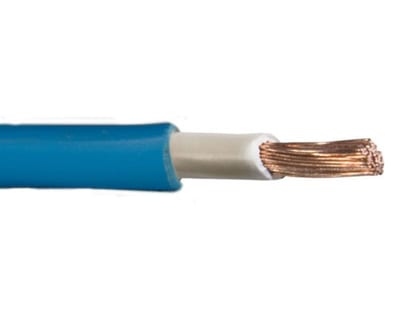

SKK 1X16 mm² Blue 50M reel
