Elis Elektro

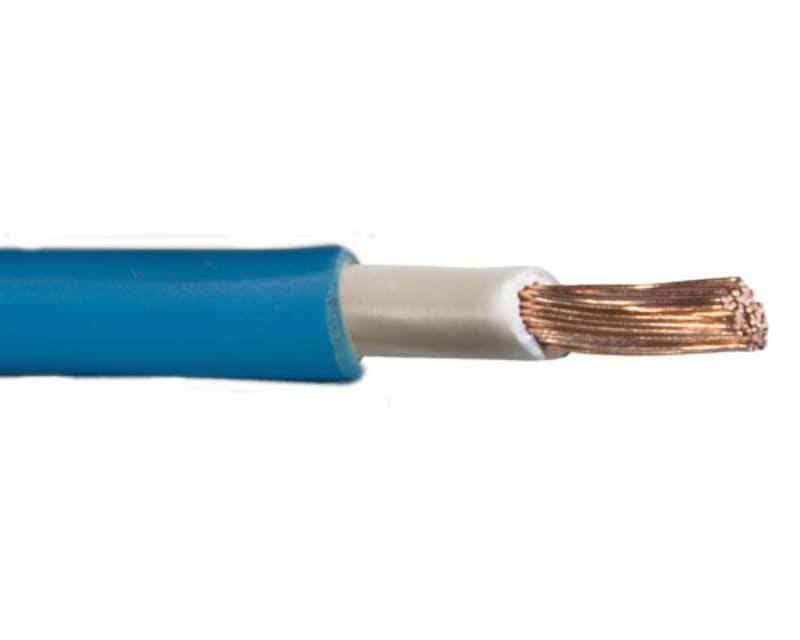

SKK 1X16 mm² Blue 50M reel
Part number1003654EAN / GTIN7070613063986HS code8544.49
Cables & Wiring
Single-Core Wires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1003654 SKK 1x16 mm² Blue 50m reel.
Technical Specifications
- Manufacturer part number (MPN)
- 1003654
- EAN / GTIN
- 7070613063986
- Sales unit
- m
- Package quantity
- 50 m
- EL number
- 1003654
- ETIM class
- EC003248 - Power cable < 1 kV, for permanent installation
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Sweden
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 195 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 750
- Nominal cross section conductor (mm²)
- 16
- Nominal voltage U0 (V)
- 450
- Nominal cross section conductor (AWG) (kcmil)
- 6
- Diameter conductor (mm)
- 5.05
- Cable width approximate (mm)
- 8.7
- Cable height approximate (mm)
- 8.7
- Number of cores
- 1
- Weight (kg/km)
- 195
- Outer diameter approximate (mm)
- 7.7
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 96
- Max. permitted conductor temperature (°C)
- 70
- Permitted cable outer temperature during assembling/handling (°C)
- -5 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- Flame retardant according to IEC 60332-1-2
- Yes
- Low temperature resistant according to EN 60811-504+505+506
- Yes
- Suitable as installation cable
- Yes
- Twisted cores
- No
- Screen
- No
- With protective conductor
- No
- Drain wire
- No
- Radial water blocking cable
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
- Certified for shipboard application
- No
- Certified as airport lighting cable
- No
- With rodent protection
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613063986
- SAP 1200827238
- Code 84015310
Product Documentation
Document preview: SKK 1x16 mm² Blue 50m reel (1003654) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro
Blanking Plug EEXE M20 Polyamid
1254668
Elis Elektro
Elis Elektro L1917029 Pipe Clip WKS 29 for NW29 Conduit
Elis Elektro
Elis Elektro 2860301 Cable Protection Half-Pipe Stainless 35x0.7 mm 1 m
Elis Elektro
Support divider rail 50mm Sendz
MP-696S
Elis Elektro
Universal Box 79X45,5X150MM Blue
TBF2
Elis Elektro

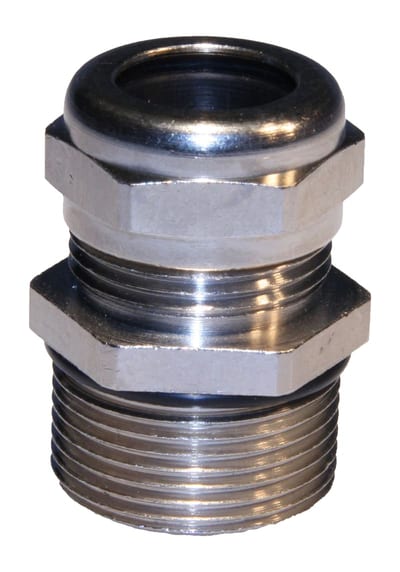

Nipple WADI-TEC M20L 6-10
1250248
Elis Elektro

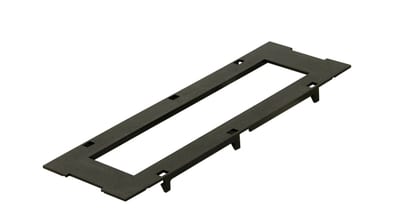

Mounting frame for UG
UAM-4-1 226
Elis Elektro

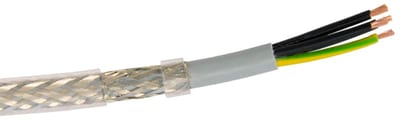

Elis Elektro 1002282 OePVC-JZ-CY 7G1.5 mm2 Copper-Screened Control Cable
