Elis Elektro

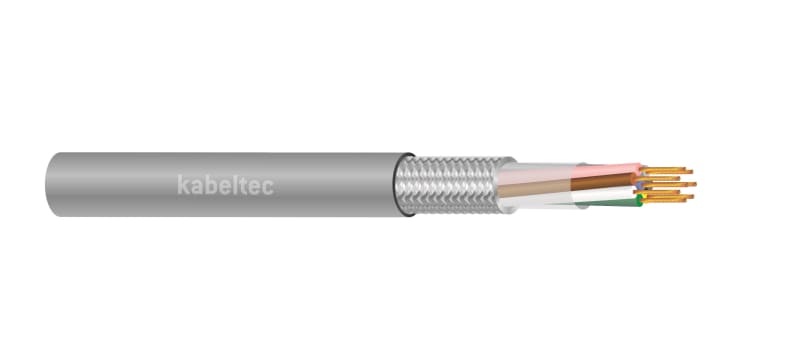

LIHCH 2X1,0 mm² Halogen-free
Part number1003582EAN / GTIN7070613072490HS code8544.49
Cables & Wiring
Control Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1003582 LIHCH 2x1,0 mm² Halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- 1003582
- EAN / GTIN
- 7070613072490
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1003582
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 72 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 1
- Nominal voltage U0 (V)
- 500
- Nominal cross section conductor (AWG) (kcmil)
- 18
- Cable width approximate (mm)
- 6.7
- Cable height approximate (mm)
- 6.7
- Number of cores
- 2
- Weight (kg/km)
- 72
- Min. permitted bending radius, moving application with forced guidance (mm)
- 32
- Min. permitted bending radius, moving application/free movement (mm)
- 32
- Outer diameter approximate (mm)
- 6.7
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 32
- Permitted cable outer temperature during assembling/handling (°C)
- -15 to 70
- Screen
- Yes
- Flame retardant according to IEC 60332-1-2
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- With protective conductor
- No
- Torsion resistant
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Oil resistant according to EN IEC 60811-404
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613072490
- SAP 1200827471
- Code 84015658
Product Documentation
Document preview: LIHCH 2x1,0 mm² Halogen-free (1003582) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro
Elis Elektro 1002246 OePVC-JZ-CY 5G0.75 mm2 Copper-Screened Control Cable
Elis Elektro
Extension M32/M40 Polyamide
12 548 07
Elis Elektro
Mounting channel MP-MK 50mm L=2M MP-821S
Elis Elektro
Cover 120mm Sendz L=3M
MP-421S
Elis Elektro
Wire Mesh Tray 120 H110 Z4 L=2,5M
MP-722HZ4
Elis Elektro
SKK 1X16 mm² Blue 50M reel
1003654
Elis Elektro

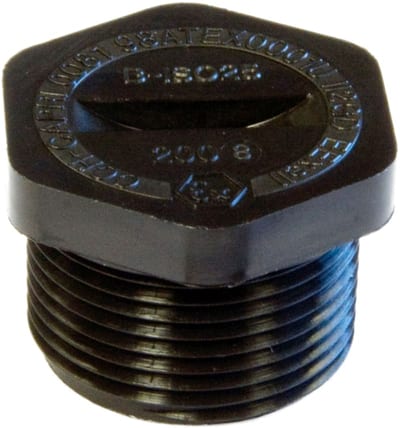

Blanking Plug EEXE M20 Polyamid
