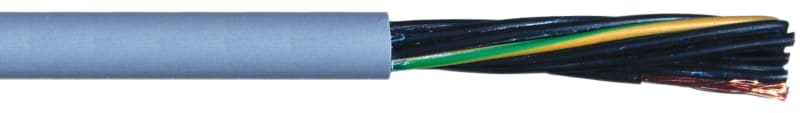

Elis Elektro OPVC-JZ 10G1.5 mm2 Numbered Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
The Elis Elektro 1002123 is a ten-core, 1.5 mm2 OPVC-JZ control cable with numbered cores and PVC outer sheath, supplied on 500 m drums. It is rated 300/500 V (U0/U) with a protective conductor, an outer diameter of approximately 11.6 mm, and is classified under ETIM EC003250 as a power cable for moving applications. Typical applications include machine wiring, control-panel interconnections, and drag-chain installations requiring individually identified conductors.
Technical Specifications
- Manufacturer part number (MPN)
- 1002123
- EAN / GTIN
- 7070613022648
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1002123
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 276 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 1.5
- Nominal voltage U0 (V)
- 300
- Nominal cross section conductor (AWG) (kcmil)
- 16
- Cable width approximate (mm)
- 11.6
- Cable height approximate (mm)
- 11.6
- Number of cores
- 10
- Weight (kg/km)
- 276
- Min. permitted bending radius, moving application with forced guidance (mm)
- 183
- Min. permitted bending radius, moving application/free movement (mm)
- 183
- Outer diameter approximate (mm)
- 11.6
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 48.8
- Permitted cable outer temperature during assembling/handling (°C)
- -15 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- With protective conductor
- Yes
- Screen
- No
- Torsion resistant
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613022648
- SAP 1200827244
- Code 84015407
Product Documentation
More from Elis Elektro
Elis Elektro
Wall Trunking 170x65 mm, 3 m, Aluminium/White (TB1710-3)
Elis Elektro
Radius reduction 400mm Al
MP-788C
Elis Elektro
Elis Snap-in nipple M25 (8-17) Black
1255035
Elis Elektro
Terminal board KB 5S
G1082525
Elis Elektro
LIHCH 2X1,0 mm² Halogen-free
1003582
Elis Elektro
Elis Elektro 1002246 OePVC-JZ-CY 5G0.75 mm2 Copper-Screened Control Cable
Elis Elektro
Extension M32/M40 Polyamide
12 548 07
Elis Elektro
Mounting channel MP-MK 50mm L=2M MP-821S
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1002123?
- 1002123 can be ordered from cballast.com as a Elis Elektro catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elis Elektro product?
- The manufacturer part number is 1002123.
- What is the HS code for 1002123?
- The customs tariff (HS) code for 1002123 is 8544.49.
- Who manufactures 1002123?
- 1002123 is a Elis Elektro product in the Cables & Wiring range.
- Is a datasheet available for 1002123?
- Yes — the 1002123 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1002123?
- The minimum order quantity is 1.
- Is 1002123 available?
- Yes — 1002123 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
